We manufacture and export a qualitative range of Masala(powder) Mixing/ Tilting Machines. Our personnel make use of premium grade raw materials and advanced techniques of production to fabricate these machines. These machines also stringently checked and are in compliance with international quality standards. Moreover, we also customize these machines as per the specifications of our clients and offer them at competitive prices.
5HP Motor 3phase
50 Hz.
Capacity as per requirement
Gear Box 3” Size.
“Main Switch Reverse Forward.
Dimension as per capacity
Type -Spiral Ribbon
We are the manufacturer of screw conveyor, we have been able to provide the customers with excellent Industrial Stainless Steel Screw Conveyor. Developed at par with the global quality standards, the range is widely used in industrial applications for moving varied material in inclines & horizontal directions.
Diameter 150mm
Type Screw Conveyors
Material SS
Motor 2HP,3 phase
Weight approx 50 kg
Hopper capacity 50 kg
Shaft Dia 45mm
Low maintenance
Robust construction
Dimensional accuracy
Resistance against corrosion

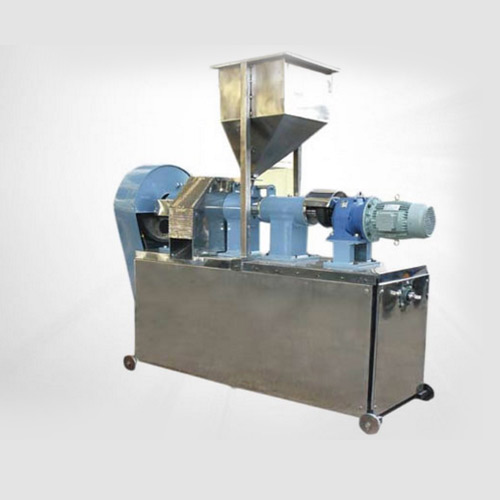

Our Soya Nugget Extruders are widely demanded across the food processing industries. Owing to the overwhelming response from our clients for our this product range, we have been able to supply these products to a wide clientele spread across the world.
1. Automation Grade- Fully Automatic, Semi-Automatic, Manual
2. Motor 60 hp
3. Production Capacity- <200 kg/hr, 400-500 kg/hr
4. Auxiliary- Mixer, Pipe Crusher, Miller
5. Dimensions (L*W*H) - 3*7*7feet
6. Machinery Weight (in kg)-700 to 1000kg
Weight | 1.5-4T,2T |
Dimension(L*W*H) | 5100*1200*2500 mm |
Power | 100kw |
We are manufacturer of all type conveyor as per customer requirement, this bucket conveyor use in food and crop industry in material transfer one place to other place.
Design | Standard, Customized |
Motor | 1 hp, single phase |
Weight | Approx 150kg |
Buckets | Food grade plastic |
Capacity | 1 ton |
Dimension(L*W*H) | vary from different models |
Power(W) | 3-22kw |
Voltage | 220V, 380, 415V |
Form of Lifting | Belt, Chain or Plate |

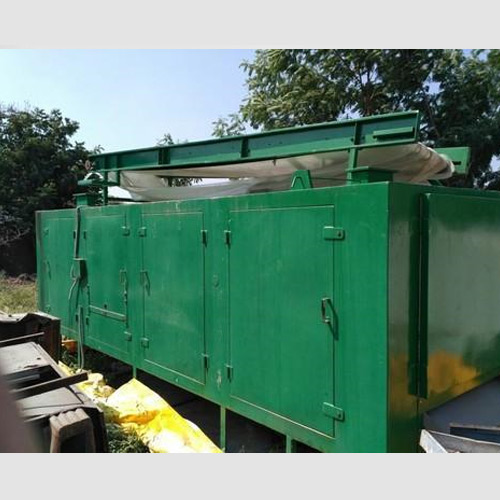

The structure for the full length of the oven will be fabricated by 75 * 40 mm channels and 50 * 50 mm angles and reinforced with cross frame jigs and gusset plates. The structures shall be erected at every 5 ft. distance and connected with 50 * 50 mm running angles. CONVEYOR BAND: The three tier conveyor will be of S.S.-304 tray type with 6" pitch roller chain. The dyno drive will be provided to vari the speed of conveyor.
All the top, side and bottom insulating panels shall be fabricated from CRCA prime quality sheets. The 4" gap in the panels will be filled with mineral wool to conserve heat and increase efficiency. The extreme bottom portion on both sides of the oven shall be covered ith CRCA sheets. Jointing covers with minerals wool be used for jointing the individual panels to avoid leakages and heat loss.
There shall be 1 no. stainless steel shell in shell type heat exchanger with firing chamber having exhaust fan mounted on the top of the chamber. The Automatic Oil burner with complete control system and the main circulating blowers will be mounted on the either sides of the chamber. Complete chamber with suction box shall be insulated with glass/mineral wool panels and coverings to avoid heat loss, increasing the thermal efficiency.
Both sides air circulation ducts with perforated holes are fabricated by 18 swg CRCA sheets. The main connecting & supply ducts are made of Stainless Steel. The adjustable dampers are provided at appropriate intervals to have uniform circulation of hot air throughout the length.
The electric motors such as 10 HP 2 nos. for main circulating fan, 0.3 HP 1 no. for burner, 5 HP 1 no. for driving, 1 HP 1 no. for exhaust and 3 HP 1 no. for extract are included in this quotation. D.O.L. starters for lower H.P. and Star Delta for 10 HP, with indicators and control instruments shall be fitted in the control panel. The wiring from control panel to motors and incoming to the control panel are excluded from this quotation. The guarantee for electrical instruments and accessories shall not be covered by us.
We are manufacturer of all type conveyor as per customer requirement, this bucket conveyor use in food and crop industry in material transfer one place to other place.
Design | Standard, Customized |
Motor | 1 hp, single phase |
Weight | Approx 150kg |
Buckets | Food grade plastic |
Capacity | 1 ton |
Dimension(L*W*H) | vary from different models |
Power(W) | 3-22kw |
Voltage | 220V, 380, 415V |
Form of Lifting | Belt |
The entire range of Collar Type Cup Filler is offered to the clients in a variety of specifications. These machines are designed and fabricated using high-grade raw material, procured from the trusted sources. Moreover, we check these machines on certain quality parameters to gauge their flawlessness.
Automatic, compact and PLC controlled machine
Simple operation and low maintenance
Top quality components and best workmanship
All contact parts are made of stainless steel
Easy pouch length adjustability
Photoelectric mark registration system for precise cutting and sealing of the pouches
Machine mounted on coaster wheels for easy movement
Minimum=50mm
Maximum=900mm
Minimum = 65mm
Maximum = 300mm
Minimum = 120mm
Maximum = 600mm
Net Weight of M/C 400-500kg.
Power requirement 3KW, Three Phase, 440V.A.C.M/C Dimension (LxWxH) Approx 1350x990x1900mm (it can be vary)
batch cutting,batch coding,rewinding mechanism provided. PLC with 7inch colour display. air pressure reqd 8kg no.of cylinders 6 units clutch brake 1 unit 30inch gear box 1 unit eye mark sensor
Input | 3 phase 415 V AC, 50 Hz |
Motor driven through VFD | 1 HP, 3 phase 415 V AC |
Heaters | 300 w X 3pcs |
Temperature Controller | Digital Temperature Controller with FEK thermocouple |
Floor Area | 1500 mm X 1125 mm |
Height | 2450 mm with Hopper |
Nett Weight | 500 Kgs |
Air | 8.0 kg/cm2g |
Low Noise
Easy to Install
Cost efficient
Power | (HP) | 2 | 3 | 5 | 7.5 | 10 | 15 |
Compressor | (RPM | 600 | 950 | 715 | 950 | 750 | 1150 |
Tank capacity | (Ltrs. | 160 | 160&250 | 250 | 250 | 420 | 500 |
Workingpressure | (Kg/cm2 | 12 | 12 | 12 | 12 | 12 | 12 |
Free Air delivery | (LPM | 192 | 245 | 394 | 495 | 835 | 1232 |
No. of cylinders | 2 | 2 | 2 | 2 | 2 | 2 |
