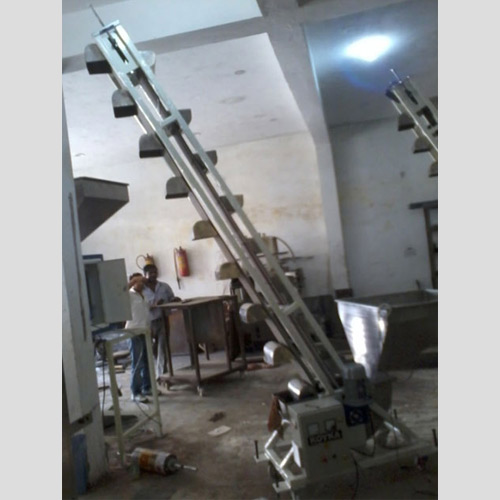

Discription of bucket conveyor

A bucket elevator can elevate a variety of bulk materials from light to heavy and from fine to large lumps. A centrifugal discharge elevator may be vertical or inclined. Vertical elevators depend entirely on the action of centrifugal force to get the material into the discharge chute and must be run at speeds relatively high. Inclined elevators with buckets spaced apart or set close together may have the discharge chute set partly under the head pulley. Since they don't depend entirely on the centrifugal force to put the material into the chute, the speed may be relatively lower. Nearly all centrifugal discharge elevators have spaced buckets with rounded bottoms. They pick up their load from a boot, a pit, or a pile of material at the foot pulley. The buckets can be also triangular in cross section and set close to on the belt with little or no clearance between them. This is a continuous bucket elevator. Its main use is to carry difficult materials at slow speed.

Early bucket elevators used a flat chain with small, steel buckets attached every few inches. While some elevators still are manufactured with a chain and steel buckets, most current bucket elevator construction uses a rubber belt with plastic buckets. Pulleys several feet in diameter are used at the top and bottom. The top pulley is driven by an electric motor.The bucket elevator is the enabling technology that permitted the construction of grain elevators. A diverter at the top of the elevator allows the grain to be sent to the chosen bin. A similar device with flat steps is occasionally used as an elevator for humans, e.g., for employees in parking garages. (This sort of elevator is generally considered too dangerous to allow use by the public.)

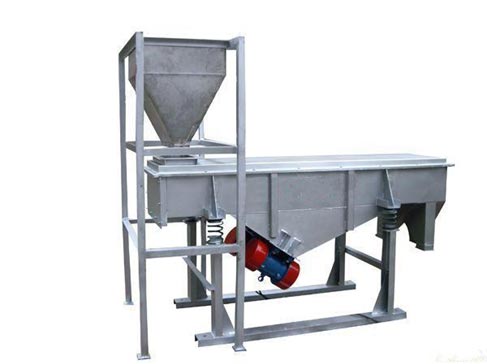

Discription of vibro shifter

Circular Vibrating Screen is a kind of new and highly effective vibrating screen which can be designed with multiple layers. It is composed of screen box, screen mesh cloth, suspension (or support) device, bottom frame and motor. Circular vibrating sieve is available for smelting , quarry , coal preparation, ore dressing, energy, power, chemical, construction material industries.

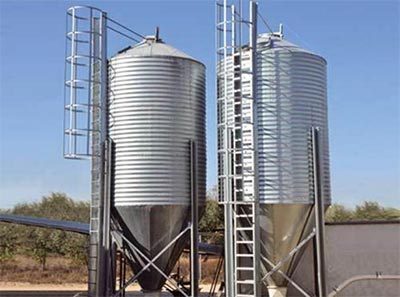

Discription of storage silo for grain

A silo is a structure for storing bulk materials. Silos are used in agriculture to store grain (see grain elevators) or fermented feed known as silage. Silos are more commonly used for bulk storage of grain, coal, cement, carbon black, woodchips, food products and sawdust.

Hopper Bottom Silos are generally built on fabricated steel structures with conical bottom made of steel plates and the corrugated sheets preformed are assembled with bolts and nuts on circular purlins and vertical stiffeners with water proof washers , cylindrically above the conical hopper with a slopped roof in the top. Ladders to clim b and get into the silos, handrails, manholes etc are provided. The grains will be discharged by gravity to the bucket elevator/belt conveyor for onward conveying. These silos can also be built on the top of concrete conical hopperhopper bottom silos. Normally these silos are recommended for storage upto 500 tones of grains like paddy having density of less than 550kg/m3. with beams and columns built in situ. Aeration, ventilation, temperature monitoring system as required are all provided to the built

Characteristics

Hopper Bottom Silos are multipurpose and are suitable for grain processing plants, animal feed plants, grain milling plants, and poultry houses.

Hopper Bottom Silos are manufactured in capacities from 20 Tons to 1000 Tons.

Rostfrei offers hopper bottom silos in diameters from 2.74m to 12.79m

Dynamic Analysis of silo structural stability is carried out considering seismic zone and wind loads of respective areas where the silos will be installed.

Zincalume steels sheets are used in the manufacturing of the silos, which are able to withstand strength 350 Mpa.

Standard angle for bottom hopper of a silo is 45 degrees. However, the bottom hoppers of angle 50, 55, 60 degrees may also be manufactured on request

Description of Ribbon Blenders

The koyka group ribbon blender are based on a proven agitator construction that provides a triple mixing action thus ensuring fast efficient blending. The dimensions and configuration of the ribbons in ribbon blender are carefully balanced to provide a movement of material within the container that avoids dead spots and gives rapid product discharge. The design of the Jas ribbon blender can incorporate features required for a customer's product or process such as: wear resistance, corrosive resistance, vacuum filling and discharge arrangements, special shaft seals, heating/cooling jackets. Ribbon blender are available in sizes 100-8000 liters in Stainless Steel 304, Stainless Steel 316 and Mild Steel Construction.

About ribbon blender design

Ribbon blender are widely used for homogeneous mixing of dry granules and powders. The blender comprises a "U" tank, shaft with two sets of spiral ribbons, one inside the other. Inner and outer ribbons are perfectly arranged, that during rotation, the material reaches each corner of the trough and imparts radial and linear motion to the whole of the material to be mixed. Our range of ribbon blender are based on a proven agitator construction that provides a triple mixing action ensuring fast, efficient blending. As the agitator rotates in ribbon blender, the material is tumbled and carried radically around the inside of the blender. The pitch of the outer ribbon moves the material towards the discharge opening. The inner ribbon which has an opposing pitch moves the material away from the discharge opening.

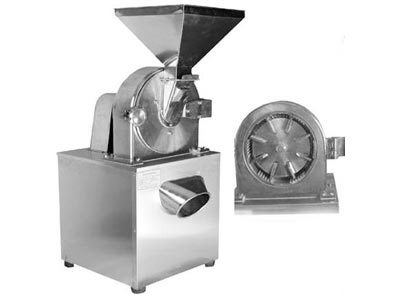

Description of Multipurpose pulses and Grains Mills Koyka group offer pulses and grains grinder, which grinds maize ,wheat,corn,groundnut,soya,red chillies, black pepper, white pepper, cinnamon, cardamom, coriander, red pepper, oregano, basil, thyme, dill seed, shell corn, ginkgo, ginseng, cave, black cohosh, ginger root, yucca root, cassava root, and poultry feed et cetera it provided with a set of three numbers of perforated round holes screens it has also three meter cable with a plug top and fitted with ampere meter and miniature circuit breaker for overload protection for motor. Also equipped with beater are fully machined and balanced. It's feature includes dust free operation; does not waste product and cause no pollution hazards. Another feature of this mill is that effective and continuous crushing leads to increased production and faster return on investments.

Operating principle of pulses and grains grinder

koyka group's pulses and grains grinders are durable utility grinders capable of grinding most pulses and grains. The Techno wings multipurpose pulses and grains grinder comprises of a heavy duty aluminum body (alternatively stainless steel construction can be provided in multipurpose pulses and grains grinder wherever necessary). Multipurpose pulses and grains grinder operate on the principle that most materials will grind or crush upon impact with the hammers. The material is feed into a multipurpose pulses and grains grinder from the top back through gravity into the grinding chamber. The grinding chamber of multipurpose pulses and grains grinder is lined with serrated wear plates, which protects the body from wear and tear. Design provides for admitting extra air during grinding to facilitate cool operation. Soft to medium hard materials are quickly pulverized to fine powder. Improved mixing and dispersion are added advantages of such mills. Quite popularly, it is also called high speed close tolerance grains mill. Uniformly fed material undergoes a complex grinding force through attrition between liner plate and hammer tip, impact of high speed hammers and collision between particles. Bottom sieve controls the particle size.

Outstanding features of pulses and grains grinder

Interchangeable screens in numerous sizes to produce the exact particle size desired

Easy to change screens in a variety of sizes

Easy access to pulses and grains grinder interior

Cold, dust free and silent running

All contacting parts are aluminum and stainless steel no corrosion hazards.

Low specific power consumption thus increased production leading to faster return on the investments.

Construction of pulses and grains grinder

pulses and grains grinder is made from heavy duty mild steel fabricated body. Heavy duty iron body is covered with stainless steel sheet. Aluminum grinding chamber lined with serrated wear steel plates, which protects the body from wear and tear. Grinding done by a set of fixed blades or hammers on a balanced rotor. A screen classifier forms the lower half of the grinding chamber.

Typical application of pulses and grains grinder

The techno wings pulses and grains grinder can be used for a wide range of application e.g. Gram dal, urad dal, moth dal, moong dal, and many more... Rice, maize, jowar, durra, bajri, ragi, wheat grits, maize grits... and many more etc.

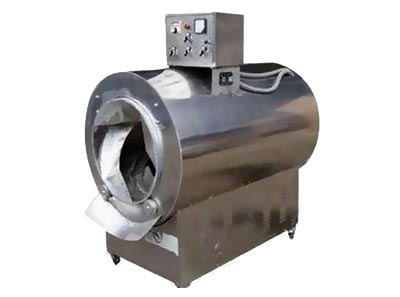

Discription of roaster machine

The Grain Roasting Machine multipurpose machine used for roasting, reduction of moisture contents, increasing self life of various types of Grains like wheat, barley, Maize, Jawar, Pulses, Seeds, Powders, Flours, Granules type products, and most idle machine for preparation of various types of Premix, Snacks foods, Energy Health Foods Fortified Nutritious foods, Baby foods, Fast moving consumer goods etc.

Pulses Roasting Machine offered comprise multi purpose roasting machine which allows for optimum roasting and moisture content reduction. Featuring use of precision engineered functional parts, these provide for enhanced shelf–life of processed products.

Some of its features include

The presence of digital temperature controller to control the heating temperature up to 250 deg.

Use low-grade coal/other fuels for consistent working

Allows for consistent quality output

Offering homogeneous mixing support

Comes with the provision of an auto temperature setting

Provide for improved consistent quality

Finding wide usage in food industry sector

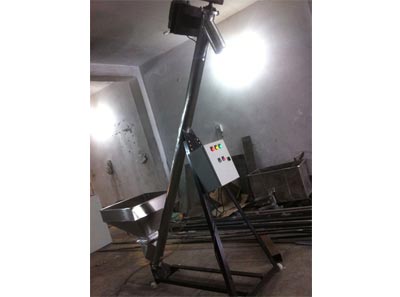

Discription of screw conveyor

A screw conveyor or auger conveyor is a mechanism that uses a rotating helical screw blade, called a "flighting", usually within a tube, to move liquid or granular materials. They are used in many bulk handling industries. Screw conveyors in modern industry are often used horizontally or at a slight incline as an efficient way to move semi-solid materials, including food waste, wood chips, aggregates, cereal grains, animal feed, boiler ash, meat and bone meal, municipal solid waste, and many others. The first type of screw conveyor was the Archimedes' screw, used since ancient times to pump irrigation water.

They usually consist of a trough or tube containing either a spiral blade coiled around a shaft, driven at one end and held at the other, or a "shaftless spiral", driven at one end and free at the other. The rate of volume transfer is proportional to the rotation rate of the shaft. In industrial control applications the device is often used as a variable rate feeder by varying the rotation rate of the shaft to deliver a measured rate or quantity of material into a process.

A flexible screw conveyor works by using the internal friction within a powder or bulk solid to transfer the forward motion of the powder in contact with the spiral to the whole tube contents. With an angled system, a dynamic equilibrium is set up with the spiral action moving some particles upwards.

Screw conveyors can be operated with the flow of material inclined upward. When space allows, this is a very economical method of elevating and conveying. As the angle of inclination increases, the capacity of a given unit rapidly decreases.

The rotating part of the conveyor is sometimes called simply an auger.

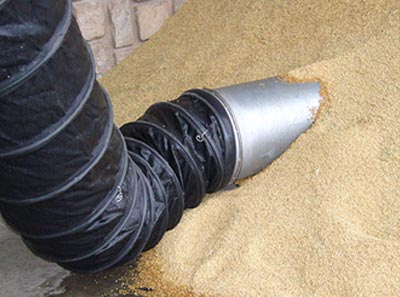

Discription of grain cooling system

The cooling system works for silos and warehouses.

For silos, the refrigerator is connected instead of the aeration fan. Installation is simple requiring minimal modifications. In fact, the system can be easily moved around and connected to other silos as required.

For warehouses, a ducting system is included at the base.

How does it work:

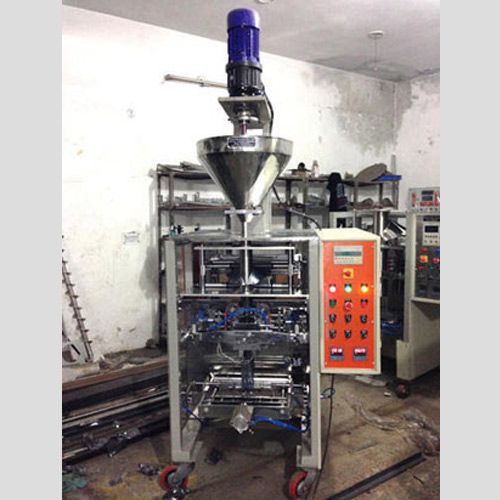

Discription of collar type auger filler

With rich industry knowledge, we are manufacturing and supplying a qualitative range of Collar Type With Auger Filler. The offered collar type is designed using the best quality components and progressive technology by our adroit professionals. So as to ensure the quality, this collar type is sternly tested on different parameters. Moreover, customers can avail this collar type from us in diversified designs and specifications.

Discription of Air Compressor

A compressor is a mechanical device that increases the pressure of a gas by reducing its volume. An air compressor is a specific type of gas compressor.Our compressors are designed and developed as per the international quality standards. This range of Air Compressors is widely demanded across the country. These compressors are complied with various industrial standards and offered at industry leading prices. Our entire range of Air compressors is highly appreciated for their matchless features and quality. Apart from being cost effectiveness, our air compressors also provide easy maintenance. Manufactured using best quality raw materials, our air compressors are rugged constructed and have shown efficient performance as well.

Following are the distinctive features of our Air Compressors:



Crankshaft:

Crankshaft is made of special steel material. This crankshaft is precision-ground and runs with minimum vibration. It is balanced and rotates on two / three ball bearings.



Connecting Rod:

Connecting Rod is precisely machined. This one- piece connecting rod with solid end structure does not require modification.



Cylinder:

The cylinder of our air compressor is made from special cast iron materials. It has got deep radial fins on the outer side for quick heat dissipation. Each of the cylinders is independently casted and then honed for smooth running.



Valve:

Vales used inside the cylinder are heat – treated and quick acting. They are made of high quality steel material. They have large flow area providing longer valve life and better performance.



Piston:

Our pistons are made from aluminum or cast iron material. They have compression ring and oil control rings for maximum competence.
