Capacity | 1-2 ton/hr |
Material | Mild Steel |
Power | 1.5 (KW) |
Air volume | 2000-3000(m3/h) |
Weight | 760 Kg |
Length | 2000 mm (approx) |
Width | 1100 mm (approx) |
Height | 1930 mm (approx) |
No. of screens | 2 |
Screening Area | 2 meter square |
No. of Blower | 1 |
Blower Type | Centrifugal |

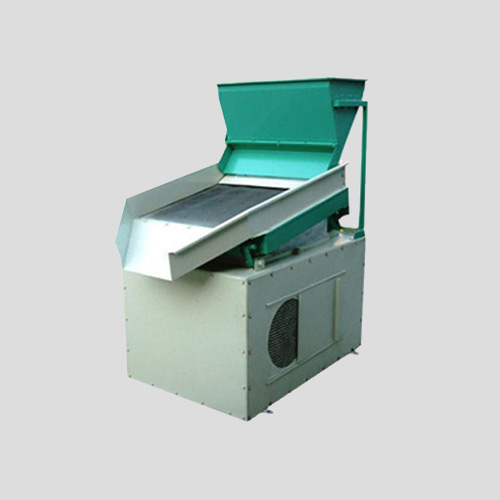

After the cleaning process, the Stone Destoner helps in separating the trash or any kind of stones in grains. Designed as per the usage requirements, these machines consume a minimal amount of energy while yielding maximum returns. The basic principle behind the working of destoners is the difference in density of the impurity and the grains.
Brand | Koyka |
Capacity | 2000 kgs per hour |
Power | 3 HP |
Phase | Single/Three Phase |
Length | 6 Feet |
Width | 3.5 Feet |
Height | 5.5 Feet |

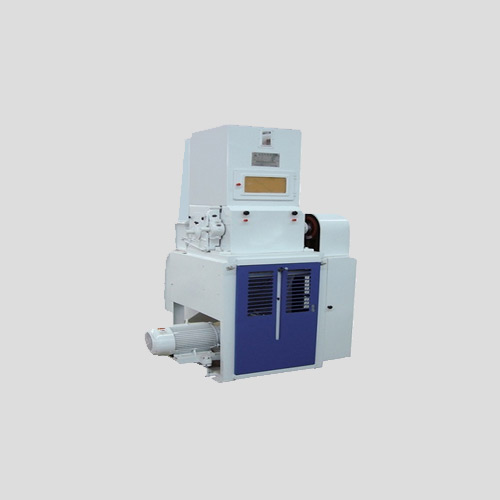

Paddy Rubber Sheller Machine are used for dehusking of Paddy. Thses are available in different caacities from 1 ton per hour to 10 Ton Per Hour
Capacity | 1 ton per hour - 2 Ton Per Hour |
Model | Mechanical Rubber and Pneumatic |
Automation Grade | Automatic |
Material | Stainless Steel,MS Sheets |
Phase | 3 Phase |
Power | 10 Hp |
Time set | Digital |
Work time | 10-200 seconds |
Working voltage | AC 220 V |
The Husk Aspirator Machine is uniquely designed and highly efficient for separating the husk from the shelled rice
Material | Stainless Steel |
Brand | KOYKA |
Width of Husk Box | 42" |
Capacity | 1-2 Tonnes |
Power Required HP | 5* 1440 rpm |
Overall Size | 2280* 1470* 1100 mm |
Net Weight | 440 kg |
Paddy separation is done by paddy separators made of M.S.structure . As the paddy is less denser , rice tends to float and is displaced at the higher end of paddy separator during its to and formation by the unique of Zig-Zags and flooring made of stainless steel .
Mixture of paddy and brown rice is fed to the paddy separator uniformly after aspiration. The separation is being done through 3 point stroke adjustment with constant RPM .
All steel designed.
New design of feeding through direct drop channels with large cross sectional and uniform loading of the individual compartments .
Precise longitudinal table guide insuring smooth running .
3 point stroke adjustment.
Atomized with latest technology for operation , no manual adjustments done.

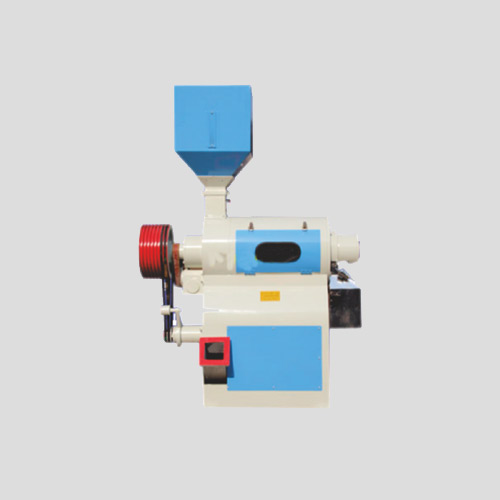

Iron Roller Rice Polisher can polish brown rice to white rice & removes bran from white rice. Iron Roll Rice Polisher features high efficiency, low rate & good appearance.
Material | MS |
Power Source | Electric |
Available Weight | 250 kg - 2 ton |
Available Voltage | 220 - 240 v |
Power | 15HP |
Available Capacity | 1000 kg - 5 ton |
1. Easy to operation.
2. High Production.
3. Accurate & efficient separation of grains.
4. Compact size.
Higher Efficiency as compare to other graders.The last major step in the modern milling process is the removal of the broken from the milled rice. Sifters or screen separators are used to separate small broken, also referred to as brewers rice, from whole grain and large broken.
Sifting will also remove germs and bran still present in the milled rice after whitening and polishing. The large broken and whole grain are either bagged for delivery to the customer, or further processed it
Capacity | 2 MT/HrPower Required 2.0HP/960rpm |
Quality | 3 Qualities in one go |
Purity | 99.50%9. |
Low power consumption 50% . Save Electercity Energy
Aero dynamically balance Empeller.
Alminium Impellor
Superior Bearing for long life & noise free operation.
Aero Dynamic Centrifugal Double Impeller blower
Fan made of aluminium and Mild steel
Very low starting torque with aluminium rotors
Fan efficiency up to 80% power saving up to 40%
Static pressures up to 200 mm (8 inches gauge) and suitable CFM
1. A higher qualities of cleaned products
2. Higher Commercial Value
3. Longer Storage Life
4. Generator less broken
5. Overdrived rice will gain weight after shining/Conditioning
6. Lower Power requirement
7. Compact Design, Easy to operate & maintain.
8. Suitable for processing long & short grains new & old rice & Basmati rice.
Silky Rice polisher machine produces a better appealing rice kernals with silky looks finish. The humid controlled air curves correct the surface defect and give a better yield with minimum weight loss.
One of the most significant feature of Indian rice is its length , wither it may be basmati , or. Indian preference will always be oriented towards the long basmati type look of the rice . Now a days many vertical & high speed poli- sheers of different makers are there in Indian market but the most suitable technology for Indian conditions is only the cone polisher theory .
After paddy separation , the brown rice is fed to the polishers for the removal of Outer bran layer . An abrasion process does the polishing . Generally 2 , 3 or 4 polishers in series are there in process . The no. & size of polishers used are determined for the kind & variety of brown rice . The profitability & viability of a rice mill largely depends upon the working of polishing section . The objective of the rice miller is to obtain the maximum percentage of the full rice with a minimum percentage of broken and removal of lesser brine& the desire shine &lustre of rice .
Long cone body.
Heavy duty cast iron construction.
Very less cake formation due to large screen area.
Suitable raw milling as well as for parboiling rice.
Packing Capacity: 50-70 Bags Per Hour .
Weighing accuracy: 50 g
Filling assembly (Gravity Feeder for coarse, medium and fine feeding) with single flap valves mounted on structure.
Net-weigher (Weigh Hopper) with discharge flap
Dumper Hopper with pneumatically operated bag clamps
Load cell of 110 kg capacity
Electronic Weighing system including microprocessor computer controller
Pneumatic arrangements including the filter regulator lubricator
All contact parts shall be fabricated in mild steel
