Koyka group have extensive knowledge of the namken, farshan and know how to design an effective process. We combine the latest technologies using computer simulation programs and build efficient and reliable process equipment. We take responsibility for design, manufacture and installation. We will commission the line and make sure that your staffs get professional training in maintenance and process control. Jas enterprise at present offers two kinds of namkeen, farshan processing line based on their production capacity and budgetary constraint.

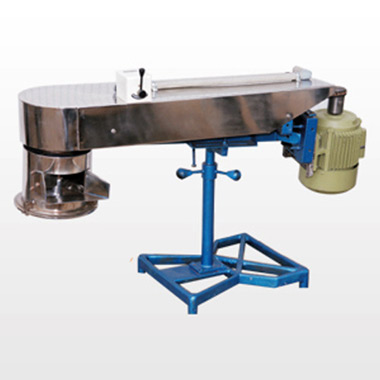

Products made by the namkeen extruder are:
Gathiya or gathia bhavnagari gathiya, jamnagari gathiya, methi gathiya, makhaniya gathiya, Tum Tum and many more...
Sev bhujia like aloo sev, garlic sev (lasun Sev), palak Sev (spinach sev), tomato sev, bikaneri bujia, ratlami sev, nylone sev, and many more...
Papadi or papdi
This extruder can also be used for grating papaya and coconuts
Processing System includes following flow chart
koyka group offer dough kneading machine, specially designed for heavy duty dough kneading for the namkeen and farshan producing industries, catering units, eatery, commercial kitchens and restaurants. The dough kneading machines are manufactured using stainless steel 304 with rotating arms and bowls. Our dough kneading machine takes lesser time and gives better water absorption and also folds and stretches the dough for aeration and fermentation. It features a stainless steel bowl, which moves at a slow speed. The dough kneading machine smakes mixing of the dough easier for preparing Gathiya or gathia bhavnagari gathiya, jamnagari gathiya, methi gathiya, makhaniya gathiya, Tum Tum, sev bhujia like aloo sev, garlic sev (lasun Sev), palak Sev (spinach sev), tomato sev, bikaneri bujia, ratlami sev, nylone sev, papadi or papdi, pani puri, chaat papadi, chapati, roties, puris, namkeens, samosa, partha, pizza et cetera
Our dough kneader's main body is fabricated form mild steel plated of adequate section to give rigidity and robustness. Rotated bowl is made from stainless steel and dough kneader's arm is made from stainless steel and it's driven by gear box. A specialized stainless steel scraper is provided with the dough kneader. Dough kneader's bowl is rotated in clockwise and arm is rotating in anti clockwise thus batch is mix uniformly. Fabricated "V" belt guard is provided for safety
Capacity Motor Hp (kw) | - |
10 kg./batch x 4 batch per hour = 40 kg dough per hour | 1 HP (0.75 kw) |
15 kg./batch x 4 batch per hour = 60 kg dough per hour | 1 HP (0.75 kw) |
20 kg./batch x 4 batch per hour = 80 kg dough per hour | 2 HP (1.5 kw) |
25 kg./batch x 4 batch per hour = 100 kg dough per hour | 2 HP (1.5 kw) |
30 kg./batch x 4 batch per hour = 120 kg dough per hour | 2 HP (1.5 kw) |
40 kg./batch x 4 batch per hour = 160 kg dough per hour | 3 HP (2.25 kw) |
Snacks, namkeen or farshan are those food items that are consumed mainly for the enjoyment of the taste and to tide the temporary hunger. The snacks, namkeen or farshan items are more durable and less perishable as they consists of natural preservatives. The snacks, namkeen or farshan comes in different mixes and tastes like Khatta Meetha Mixture, Malvi Mixture, Gujarati Mixture Namkeen and many more. To increase the taste, these snacks are also added with various nuts, dry fruits, coconut slices, and other ingredients. For preparing snacks, namkeen or farshan different types of machineries of different sizes are used. Potatoes and gram flour (besan) are used as a base material for preparing snacks
Prepare the desired amount of dough either with help of Jas flour kneading or mixing machine. or manual. This dough is passing through namkeen extruder machine and long rods of sev, bhujia, gathiya come out from the extruder with fitted die which are directly placed in the frying Pan for Frying. After that kept out from frying pan and place it in to the oil extractor to remove exceed oil. ( Please note that you can use continuous fryer for larger and low fat production).
Model No | Extruder Size | HP (KW) | Production capacity per hour Jas-NM-50 6” | 0.5 |
(0.37) | 25-30 kilograms. Jas-NM-90 | 8” | 1 (0.75) 60-70 Kilograms JAS-NM-92 | 8” brass rotor |
2 (1.5) | 70-80 Kilograms JAS-NM-93 | - | 12 Inch 3 (2.25) 180-200 Kilograms | - |
Koyka group offers two types of rectangular batch fryer with tilting system. Direct Heat Type rectangular batch fryer Indirect heat type rectangular batch fryer Precisely engineered our rectangular batch fryer reflects the perfection in terms of quality and innovation. Our passion to develop high quality manufacturing machines is apparently visible in these machines, which have earned wide appreciation from our customers for their longevity and convenient operating. These rectangular batch fryers are offered by us at industry leading prices.
Direct fryers are those in which the cooking oil is heated by an internal source in the fryer pan. The rectangular fryer is product in the intermediate range between the batch type and continuous fryers. The unique feature of this fryer is its tilting system that enables unloading of products in a single stroke auto ignition burner thus automated temperature control that provide better and consistent product quality and saving in fuel and oil. This fryer is best suited for low bulk density products such as corn flakes, rice flakes, kurkure (nicknack), pellets, onion flakes, potato, banana chips etc.
Rectangular fryer is fabricated in stainless steel body having pan is mounted on a stainless steel body. The pan is having multiple opening for oil inlet from one side and outlet from the other side, the flow of oil is regulated by an oil circulating pump. The heated oil in the pan is coming from the heat exchanger and going out into the bucket type filter from the side of the pan. The pan is properly insulated from the bottom to avoid heat loss. Continuous bucket type filters for filtering the edible oil continuously. The frying system is connected with digital temperature controller and control panel. The unique feature of this fryer is its tilting system that enables unloading of products in a single stroke after frying for uniform and consistent product quality.
Pan size | 4’.6” x 2. 6” ’x 10” |
Power / Fuel Consumption | 250 watt./ 150000 Kcal/hr. |
Edible Oil Holding Capacity | 130 to 145 Litter |
Centrifugal dryer used to remove excess oil/water from namkeens, potato and banana chips. It has a rotating basket in which the product which has to be dried is placed, after a spin for few minutes the product is dried, only the surface water/oil is removed from this machine product is not fully dried.
Washed potato / banana or fried namkeen poured into the drum of centrifuge hydro extractor from top, the inner stainless steel perforated round holes screen removable drum rotates at the high speed. Water / oil will remove from potato / banana or namkeen by centrifuge hydro extractor. Detach the drum and remove semi dry material from drum as per our standard supply, but now due to tilting type centrifugal hydro extractor no need to remove rotated drum just push the lever and tilt the drum thus dried material came out.(tilting up to 180° ) the centrifuge hydro extractor drum rotated by suitable electric motor
Centrifuge hydro extractor is also most suitable for extracting oil from sev, ganthia, papadi, fulvadi, chevada, farshan, namkeen, fryames, bhujia, any fried items or extracting water from potato, banana, plantain or cassava wafers.
Unique and reliable design
The potato dryer machines are highly effective to remove oil or water from the input material.
Easier operation and less maintenance cost.
No skill labour required.
Cold and silent running
Robust construction
Low specific power consumption
Durable long life
Rotating Drum Size | Ø 13 X 11 inch | Ø 15 X 12 inch | Ø 22 X 18 inch |
Electric Motor | 0.5 HP | 1 HP | 3 HP |
Required Space | - | 89 X 61 X 74 cm | - |
Our range of flavor mixing machine is extensively used for apply seasoning to fried product in uniform manner. The unit comprises of ellipsoidal shaped pan fabricated using stainless steel sheet and mounted on the heavy duty reduction gear box shaft, which is driven by an electric motor. These flavor mixing machine are available in stainless steel 304 or 316 contacting parts. Exterior drum surfaces are available with satin finish or polished to near mirror finish to provide ease in cleaning of the unit. This batch type flavor mixing machine is useful for potato chips, banana chips, fried or roasted nuts, bangle grams or pulses, pellet / kurkure (cheese puffs, cheese curls, cheese balls, cheesy puffs, corn curls, corn cheese) nik naks( extruded corn snack).
Stainless steel 304 semi ellipsoidal size pan with a circular mouth for charging and discharging of fried food products pan mounted at an inclination of 45 degrees to the horizontal. Suitable TEFC motor with suitable worm reduction gear box and pulley arrangement for rotating coating pan. The motor and gear box is mounted inside sturdy mild steel frame and the pan mounted on the gearing housing fitted in the stand. All joints argon arc welded and all stainless steel parts polished to suitable finished required of food processing equipment mild steel parts automotive painted to smooth finish.
Motor | 1HP | 2HP | 3HP | 5HP |
Coating drum size | 30" | 36" | 42" | 48" |
Production capacity per hour | 30-40kg | 50-60kg | 80-100kg | 100-125kg |

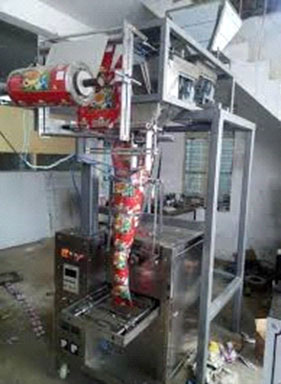

Sealing Type | Center Seal |
Roll Width | 120 mm - 450 mm |
Feeding System | Weigh Filler / Load Cell |
Main Motor | 1/2 H.P, AC Drive |
Electrical Supply | 220 V, AC, Single Phase, 50 HZ OR 440 V, AC, Three Phase, 50 Hz |
Packing Film | Any Heat Sealable Laminate |
Temperature | Controller PID |
Machine Speed | 7 to 10 Pouch / Min for single head (Depends upon Pouch Size and product weight to be filled) 15 to 20 Pouch / Min for double head 21 to 30 Pouch / Min for triple head |
Contact Parts | Food Grand Stainless Steel SS 316 / SS 304 |
Compressed Air | 6 CFM @ 6 Bar (Depending On Attachments) |
Additional Attachments | Batch Cutting Device, Pneumatic, Coding Device, Nitrogen Flushing |
A compressor is a mechanical device that increases the pressure of a gas by reducing its volume. An air compressor is a specific type of gas compressor.Our compressors are designed and developed as per the international quality standards. This range of Air Compressors is widely demanded across the country. These compressors are complied with various industrial standards and offered at industry leading prices. Our entire range of Air compressors is highly appreciated for their matchless features and quality. Apart from being cost effectiveness, our air compressors also provide easy maintenance. Manufactured using best quality raw materials, our air compressors are rugged constructed and have shown efficient performance as well.
Following are the distinctive features of our Air Compressors:
Crankshaft is made of special steel material. This crankshaft is precision-ground and runs with minimum vibration. It is balanced and rotates on two / three ball bearings.
Connecting Rod is precisely machined. This one- piece connecting rod with solid end structure does not require modification.
The cylinder of our air compressor is made from special cast iron materials. It has got deep radial fins on the outer side for quick heat dissipation. Each of the cylinders is independently casted and then honed for smooth running.
Vales used inside the cylinder are heat – treated and quick acting. They are made of high quality steel material. They have large flow area providing longer valve life and better performance.
Our pistons are made from aluminum or cast iron material. They have compression ring and oil control rings for maximum competence.
