Packaging Machines

Product Details:

Minimum Order Quantity 1 Piece
Capacity (pouch per hour) 1000-2000,3000-4000,2000-3000
Pouch Capacity 10-50 grams,50-200 grams
Machine Power 0-1 HP
Model No. kepl61
Power(KW) 3
Condition New
Automation Grade Semi-Automatic



We are instrumental in offering a wide variety of FFS Machine Single Trackto the esteemed clients, as per their specific demands. These machines are widely used in various industries to cater to their requirements in the most efficient manner.





30 mm min.

Length: 40 m.

Max Width: 180 m.

Max Width: 300 mm.



Roll width: Min 60 mm & max.: 300 mm (for 3 side & 4 side seal)

Minimum: 75 mm & max.: 380 mm (for centre seal)

Core dia. of roll: 75 mm max. & outer dia of film roll : 350 mm



Polyester, Foil, Metalised Polyester and similar laminates

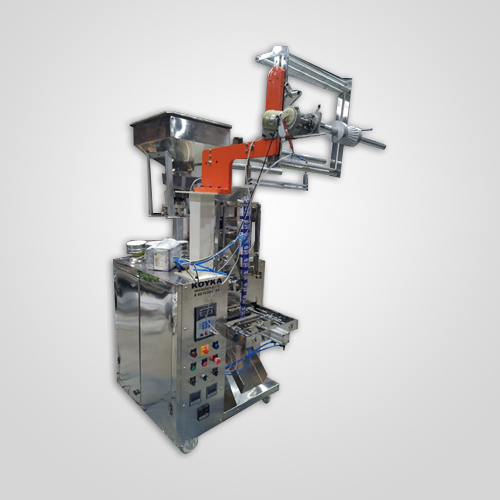

Pneumatic Cupfiller Packing Machine

Product Details:

Minimum Order Quantity 1 Piece
Material SS. or M.S.
Machine Type Semi-Automatic
Sealing Type Center Sealing,Three Side Seal
Electrical Supply Three Phase,Single Phase
Voltage 220
Dimension 1350x990x1900mm aprx
Machine Power 0-1 HP,1-2 HP
Power 3kw



The range of Semi Pneumatic Cup Filler is offered to the clients in varied specifications. Designed by a team of experts, these machines conform to the international quality standards. Owing to the durability and rugged construction, these machines are highly demanded to cater to the industrial requirements in an efficient manner.





Automatic, compact and PLC controlled machine

Simple operation and low maintenance

Top quality components and best workmanship

All contact parts are made of stainless steel

Easy pouch length adjustability

Photoelectric mark registration system for precise cutting and sealing of the pouches

Machine mounted on coaster wheels for easy movement



Pouch Width: Minimum=50mm, Maximum=900mm

Pouch Length: Minimum = 65mm, Maximum = 250mm

Film Width: Minimum = 50mm, Maximum = 200mm

Net Weight of M/C 600kg-700kg

Power requirement 3KW, Three Phase, 220V.A.C.

M/C Dimension (LxWxH) Approx 1350x990x1900mm (it can be vary)

Number of motors 3,

Clutch brake 2 units

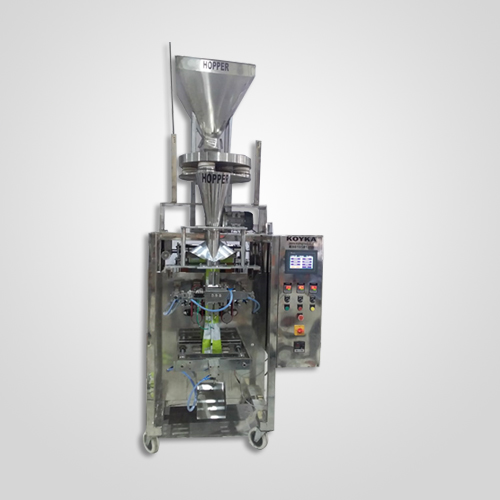

Collar Type Cupfiller

Product Details:

Minimum Order Quantity 1 Unit
Machine Type Automatic
Brand Koyka
Capacity 1kg-10kg
Power Consumption 3KW-5KW



The entire range of Collar Type Cup Filler is offered to the clients in a variety of specifications. Cup Filler Collar Type machines are designed and fabricated using high-grade raw material, procured from the trusted sources. Moreover, we check these machines on certain quality parameters to gauge their flawlessness.





Automatic, compact and PLC controlled machine

Simple operation and low maintenance

Top quality components and best workmanship

All contact parts are made of stainless steel

Easy pouch length adjustability

Photoelectric mark registration system for precise cutting and sealing of the pouches

Machine mounted on coaster wheels for easy movement



Pouch Width

Minimum=50mm

Maximum=1900mm

Pouch Length

Minimum = 65mm

Maximum = 300mm

Film Width

Minimum = 120mm

Maximum = 400mm

Net Weight of M/C 800kg-900kg.

Power requirement 3KW, Three Phase, 440V.A.C.M/C Dimension (LxWxH) Approx 1350x990x1900mm (it can be vary)



Pneumatic Auger Packing Machine

Product Details:

Minimum Order Quantity 1 Piece
Material M.S. and S.S.
Brand Koyka
Capacity Upto 1kg
Power Consumption 2kw
Machine Type Automatic



We are one of the trusted names of the market instrumental in offering an excellent range of Auger Filler Machine to the clients. Semi Pneumatic Auger Filler Machine are designed, fabricated and packed in compliance with the international quality standards, with the assistance of our team of experts. Besides, our quality controllers check these machines to gauge their defect-free nature, before their dispatch.





Automatic, compact and PLC controlled machine

Simple operation and low maintenance

Top quality components and best workmanship

All contact parts are made of stainless steel

Easy pouch length adjustability

Photoelectric mark registration system for precise cutting and sealing of the pouches

Machine mounted on coaster wheels for easy movement



Minimum=50mm

Maximum=900mm

Minimum = 65mm

Maximum = 250mm

Minimum = 50mm

Maximum = 200mm

Net Weight of M/C 600kg-700kg.

Power requirement 3KW, Three Phase, 220V.A.C.

M/C Dimension (LxWxH) Approx 1350x990x1900mm (it can be varied)

Number of motors 3

Clutch brake 2 units



Collar Type Auger

Product Details:

Minimum Order Quantity 1 Piece
Machine Type Automatic
Brand Speed KEPL 30- 35 Pouch per Min
Capacity Upto 10 kg
Power Consumption 2kw-5kw



The range of Collar Type Auger Based Filler offered by us is widely appreciated in the market for its durability and rugged construction. Collar Type Auger Filler machines are fabricated by a team of experts, in compliance with the international quality standards. Moreover, we make sure that the ordered products get delivered at the clients’ premises within the committed time frame.





Automatic, compact and PLC controlled machine

Simple operation and low maintenance

Top quality components and best workmanship

All contact parts are made of stainless steel

Easy pouch length adjust ability

Photoelectric mark registration system for precise cutting and sealing of the pouches

Machine mounted on coaster wheels for easy movement



Pouch Width

Minimum=50mm

Maximum=1900mm

Pouch Length

Minimum = 65mm

Maximum = 300mm

Film Width

Minimum = 120mm

Maximum = 400mm

Net Weight of M/C 800kg-900kg.

Power requirement 3KW, Three Phase, 440V.A.C.M/C Dimension (LxWxH) Approx 1350x990x1900mm (it can be vary)

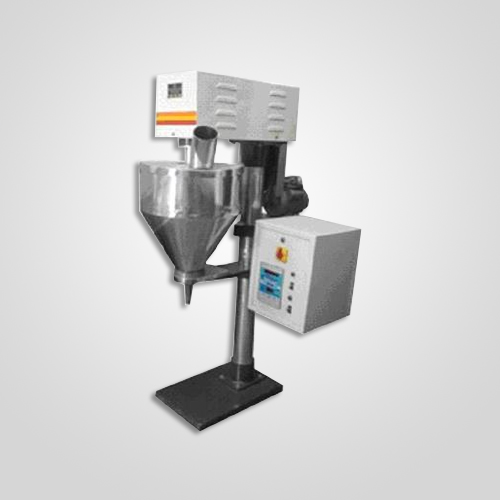

Manual Auger

Product Details:

Minimum Order Quantity 1 Piece
Machine Type Manual
Brand koyka
Capacity Upto 10kg
Power Consumption 3kw



Manual Auger Filler Machine offered is offered under model SPCS 900V and works on voltage (V/Hz) 220/50 with power (W) requirements of 230. For smooth and consistent performance, the system comes with 1.5 hp three phase motor support and allow packing in weights of 500gm to 1000gm. Some of its features include stainless steel 304 grade funnel screw, 20 kg stainless steel hopper support, choice of motor availability in single phase, allows scale feedback for precision weighing, system driven by electric motor at top of auger, agitator support for keeping feed to centre of auger, provides for maintaining constant head pressure, PLC support for sending signal to auger drive system among others.



Model SPCS 900V
Voltage (V/Hz) 220/50
Power (W) 230
Cloutch break 60 tork
Sealing Speed (m/min) Manuel
Motor 1.5 hp three phase
Staler motor ½ hp three phase
Packing weight 500gm to 1000gm
Funnel screw Stainless steel 304 grade
Hopper 20 kg stainless steels



Note: All motor also available in single phase also

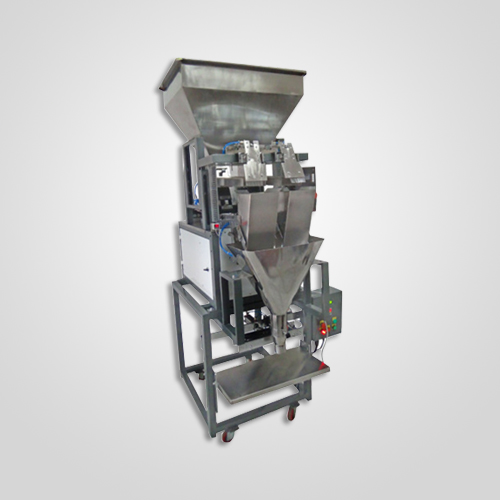

Manual Weigher

Product Details:

Weighing Range CUSTOMIZED
Speed(fills/Min) 4-5 pouch per min
Type Manual Filling
Weighing Accuracy 0.1% to 2% depending upon the material
Power Supply 230V. AC. Single phase 300VA per Head
Number of Heads Single Head
Feeding Method Linear Vibratory Feeder
Material to be filled All types of Granual Items

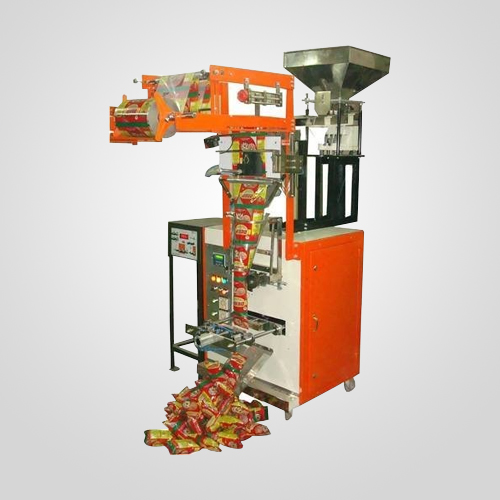

Single Head Weigher Machine

Product Details:

Sealing Type Center Seal
Roll Width 120 mm - 450 mm
Feeding System Weigh Filler / Load Cell
Main Motor 1/2 H.P, AC Drive
Electrical Supply 220 V, AC, Single Phase, 50 HZ OR 440 V, AC, Three Phase, 50 Hz
Packing Film Any Heat Sealable Laminate
Temperature PID
Controller
Machine Speed • 5to 10 Pouch / Min for single head (Depends upon Pouch Size and product weight to be filled)
• 10 to 15 Pouch / Min for double head
• 15to 25 Pouch / Min for triple head
Contact Parts Food Grand Stainless Steel SS 316 / SS 304
Compressed Air 6 CFM @ 6 Bar (Depending On Attachments)
Additional Attachments Batch Cutting Device, Pneumatic Coding Device, Nitrogen Flushing

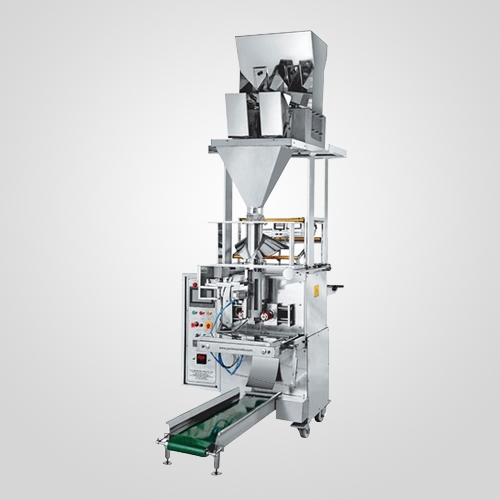

Double Head Weigher Machine

Product Details:

Minimum Order Quantity 1 Piece
Brand Koyka
Capacity 1kg-10kg
Power(kw) Speed 3kw-5kw
5-10 pouch per min
Power Consumption(HP) 1-5hp
Dimension(L*W*H) 5X5X11 (in feet)
Condition New
Packaging Material Plastic
Voltage(V) 220
Model No. kepl007
Machine Type Automatic



We offer Weigher Machine and MultiheadWeigher Machine to our clients at best market price.





Suitable for packing Granual items

Load cell based with microprocessor panel

Reqd wt. can be entered through press button on panel

M/c will run in coarse and fine mode

Material will be fed to vibrators through hopper

L x b x h = 2200 x 1200 x 2700 mm

Aprxwt 300kg

Accuracy + - 50gm in 50kg

Capacity 4 to 5 ton per hour

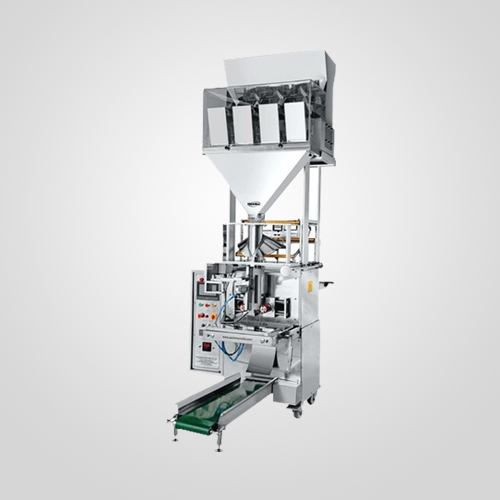

Four Head Weigher Machine

Product Details:

Minimum Order Quantity 1 Piece
Material M.S. body,contact part s.s.
Capacity (pouch per hour) 15 -20 Pouch Per Min
Machine Power 1-2 HP,2-3 HP
Pouch Length 4
Pouch Capacity 10-50 grams, > 1000 Grams



We offer Collar Type Weigher Machine and Multihead Weigher Machine to our clients at best market price.





Suitable for packing Granual Items

Load cell based with microprocessor panel

Reqd wt. can be entered through press button on panel

M/c will run in coarse and fine mode

Material will be fed to vibrators through hopper

L x b x h = 2200 x 1200 x 2700 mm

Aprxwt 300kg

Accuracy + - 50gm in 50kg

Capacity 4 to 5 ton per hour

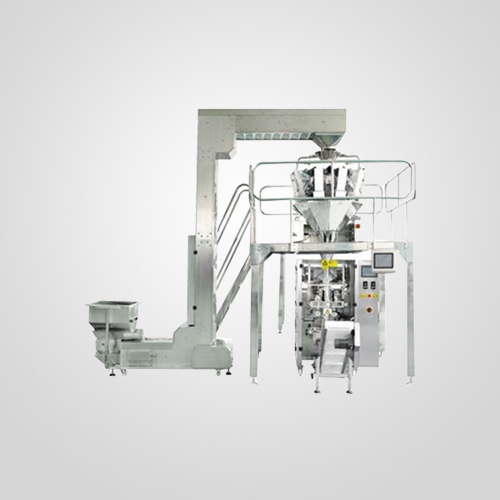

Multi Head Weigher Machine

Product Details:

Country of Origin Made in India
Brand KOYKA
Model Name/Number KEPLML
Automation Grade Automatic
Packaging Application GRANULES PACKING
Filler Type MULTI HEAD
Packaging Speed 50- 60 POUCH PER MINs
Voltage 440 V



Our enterprise is counted among the reliable manufacturers and suppliers of Multi Head Packing Machine. The products we offer are developed by a team of educated professionals in tandem with the standards and guidelines laid by the industry. To meet the diverse requirements of the patrons, we offer these conveyors in different sizes and technical specifications with conveyor Dry & Processed Foods, Fresh Foods.





Use the digital sensors to enhance speed, precision and anti-jamming compatibility

Frame with IP65 protection

Statistical Data-Inspect on screen and via optional printer output

Options:Dimpled plate on all product contact surfaces, Overweight discharge equipment, Collection hopper, Printer.



Weight: 320Kg

Gross: 380Kg

Power Supply: 220V

Power: 1100W

Package Size(mm) : 1440(W) x 1140(D) x 1020(H)

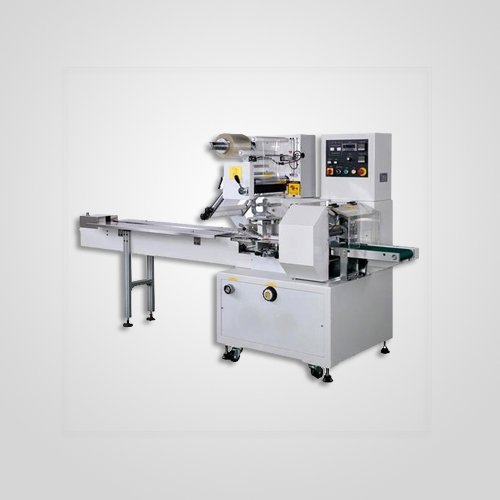

Flow Wrap Machine

Product Details:

Minimum Order Quantity 1 Piece
Material SS or MS
Speed 30-150ppm
Sealing type Center sealing
Power 3 KWs
Packing Pillow type



Horizontal Flow Wrap Machine offered is backed by latest technology support so as to offer optimum horizontal pack wrapping operations. Coming with electronic working interface, these horizontal wrapping machines come with support of independent motors and provide for economical wrapping of single product. Some of its features include servo motor support & PLC interface for precise operations, elf alarm display the malfunction, reset button for making easy mark registration while film is changed, suitable for irregular, cubical, cylindrical, square, rectangular shaped solid products, manual/auto feeder support, PID (Programmable Integral Derivative) based temperature controller among others.





Product Application Irregular, Cubical, Cylindrical, Square, Rectangular shaped solid Products
Quantity/Pouch One Product/ Pouch (Can be changed as per requirement)
Feeding System Manual, Auto Feeder (Conveyor, Trolley etc.)
Temperature Controller PID (Programmable Integral Derivative) based
Machine Control PLC (Programmable Logic Control) based
Roll width Max. 380 mm
Compressed Air 6 CFM @ 6 Bar
Pouch/Sealing Type Pillow type / Center seal
Pouch Dimension Length (60-140,) Width (35-150), Height (10-70)in mm
Power Consumptions 3 kW
Speed 30-140 Pouch / Min (Depends on laminate, Products size and shape)
Electric Supply 220 V, AC, Single Phase, 50 Hz
Machine Dimension Length (3600) x Width (1500 x height (2000) mm
Net Weight 650 Kg
Optional Attachments (At an extra cost) Electronic Coding Device



Liquid Packaging Machines

Product Details:

Minimum Order Quantity 1 Piece
Material SS or MS
Brand Koyka
Capacity 5-200ml
Power Consumption 3KW
Machine Type Semi-Automatic
Color White/orange
Filling type Piston
Uses Liquid Packing Machine



Shampoo Packaging Machine offered is available in working capacities of 100Ltr to 500Ltr and come in fiber or stainless steel barrel support. Also featuring stirrer shaft in stainless steel material, it is available in different working capacities and offers clean and durable packaging support in involved processes. Further, these machines come fabricated in accordance to GMP standards and are mounted on movable caster wheels that allow easy movement. For more process convenience, these also come with adjustable volumetric cups for changing fill volume size.





Available in different working capacities

Offering clean and durable packaging support

Machines fabricated in accordance to GMP standards

Machine coming mounted on movable caster wheels that allows easy movement

Allows measurement and packaging of liquids from paste of those having high viscosity

Comes with adjustable volumetric cups for changing fill volume size

Also suitable for packaging viscous liquids like Sauces, edible oils

Provides for cost effective packaging solutions



Capacity :100Ltr. To 500Ltr.

Barrel:Fiber OR Stainless Steel

Stirrer Shaft in S.S.Materiel

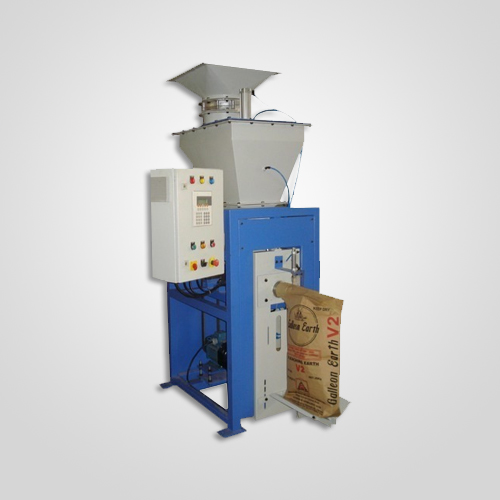

Bagging Machine

Product Details:

Minimum Order Quantity 1 Piece
Material SS or MS
Machine Capacity Upto 50 Kg
Brand koyka
Model kepl130
Dimension(L*W*H) 3X3X5
Driven Type Electric
Packaging Type Plastic Foil
Automatic Grade Semi-Automatic,Automatic
Power(KW) 3
Condition New



With thorough industrial knowledge, we are manufacturing and supplying a gamut of Pulses Packing Machine. These products are manufactured employing latest machines and tools in accordance with the international quality standards and guidelines. Widely used for packing different products with single spout for weighing and filling in standard open mouth bags. These machines we offer are widely applauded in the market for their rugged construction, optimum performance and simple operations. The machine shall be approved and stamped by Department of Legal Metrology before dispatch.





Double Thread Heavy duty Bag Closing Machine complete with sewer head mounted on a tubular pedestal column with hand wheel and rack & pinion arrangement for height adjustment with 0.5 hp motor

Slat Conveyor 4000 long and 350 mm wide with 1 hp geared drive

Control Panel

Double action foot switch

Dual thread cone mount

Heavy duty base

Hand operated centralized lubrication unit



Packing Capacity: 300 Bags Per Hour for 25kg bags

Weighing accuracy: 50g

Machine will be complete in all respects, factory assembled and ready for installation under your hopper. Machine will include:

Filling assembly (Gravity Feeder for coarse, medium and fine feeding) with single flap valves mounted on structure.

Net-weigher (Weigh Hopper) with discharge flap

Dumper Hopper with pneumatically operated bag clamps

Load cell of 110 kg capacity

Electronic Weighing system including microprocessor computer controller

Pneumatic arrangements including the filter regulator lubricator

All contact parts shall be fabricated in mild steel

Koyka Automatic Packing Machine with single spout for weighing and filling in standard open mouth bags.

Model: GF 02E

Packing Capacity: 600 Bags Per Hour for 5kg bags

Weighing accuracy: 50g

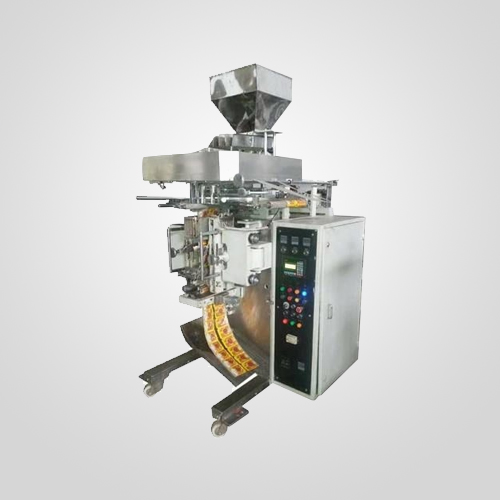

Multitrack Pouch Packing Machine

Product Details:

Minimum Order Quantity 1 Piece
Material SS or MS
Model No. kep l0080
Automatic Grade Automatic
No. of Tracks 4,6
Voltage (V) 220
Power (KW) 5kw
Rated speed (strokes/min) 50-100
Material to be packed Shampoo, Honey, Pickel, Oil
Filling System Piston Filler



Our expertise of this domain has enabled us to offer a remarkable Multi Track Filling Machine to our clients. These machines are highly demanded in the market for their effective use in several industries and sectors. Besides, we put in all our efforts to make timely delivery of the ordered products at the clients premises.





Simple operation and low maintenance

All contact parts are made of stainless steel 316

This machine is equipped with the AC frequency drive with the latest addition for speed adjustment

Photoelectric mark registration system for precise cutting and sealing of the sachets/pouches

Custom made to suit specific requirements

Top quality components and best workmanship



Packing Range: 2ml to 50ml ( 2gm to 50gm)

Filling System: Piston Filler, Cup Filler

Type of Sealing: Four Side Seal

Packing Material: Shampoo, Oil, Honey, Ketchup, Tea, Free Flow Powder

Film Size: 400mm-900mm width x 50mm-150mm length

Film Roll Size: OD 250 to 400mm max. ID film reel pipe 75mm min

Film Roll Type: Laminated film in roll supported film e.g. aluminum foil PE, PP

Speed: 50 to 100 Stock Per Minute (varies with the nature of product & filling range)

Power: 4 KW 440V/AC/Three Phase

Optional: Batch Coding Device, Batch Cutting Device Auto Lubrication, GMP Model, Gas Flushing Unit Level Sensor

Machine Size: 2200mm x170omm x 2300mm

Weight: 1500kgs (approx)

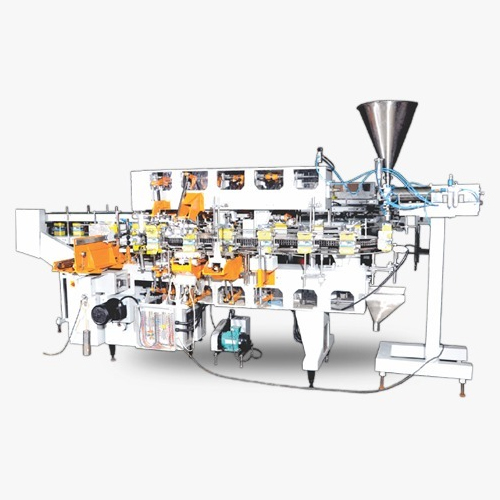

Liner Carton

Product Details:

Minimum Order Quantity 1 Piece
Material SS or MS
Model No. kepl0072
Machine Type Automatic
Rated Speed (cartons /min) 30-40
Station 14 Stations



Our esteemed clients can avail a wide range of supreme quality Liner Carton Fill and Seal Machine from us, as per their specific demand. These machines are made available to the clients in a variety of technical specifications, in order to meet their specific demands in an efficient manner. We also check these products on certain well-defined parameters to gauge their flawlessness.





Tough construction

Easy maintenance

Require less maintenance



Model KEPL 80
M/c Mechanism Intermittent
Rated Speed 45-50 carton /min. (depend upon product and pack size)
Power consumption 8KW (depending upon equipment)
Electric Supply 3 phase, 415V, 50Hz
Carton Dimension Min Max
Length 60mm 200mm
Width 22mm 108mm
Length + Width 94mm 285mm
Height 85mm 250mm
Main Motor 1.5KW, 415V,
3 Phase 1440 RPM
Weight 2000 kg
Packing Limit NA: 50-1000gm (depend upon Products)
Air consumption 4CFM at 6kg/cm



Fully Automatic Liner Carton Fill & Seal Machine:

Temp. Controller PID based
Machine Colour Off White/Grey
Product to be packed Liquid/Granules
Coding Unit Embossing provided with M/c (digit to be purchased)
Packing Material Duplex carton with heat sealable linear attached inside
Floor Space 5600 x 3000mm

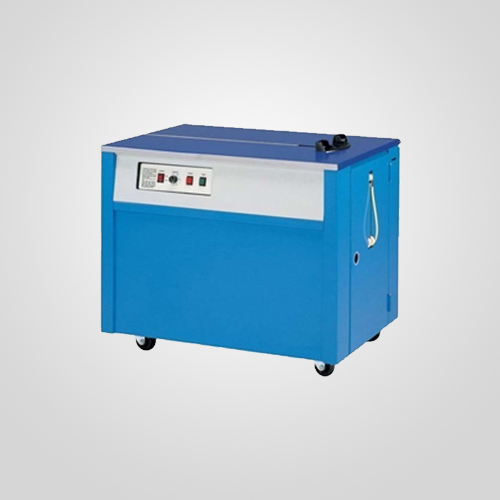

Strapping Machine

Product Details:

Minimum Order Quantity 1 Piece
Capacity 2/sec
Brand Koyka
Model kepl0078



We are a trusted organization engaged in offering an exclusive range of Semi - Automatic Box Strapping Machine to the esteemed clients. These machines are fabricated as per clients’ requirements, at our sophisticated production unit. Moreover, we can customize these machines as per the exact details specified by the esteemed clients.





Rugged construction

Durable standards

Require less maintenance



Model KEPL 740 H (Deluxe Model)
Cycle Time 1.5 sec/strap
Tension Range 15~45 kgs
Strap Width 6,9,12,15,5 adjustable
Sealing Method Heating element
Reel Inside Diameter. 200mm
Power Supply 220/50/1PH
Table Height 780
Power Consumption 0.5 KW
Layout Dimension L902 x D575 x H 780 mm
Weight 115 kgs

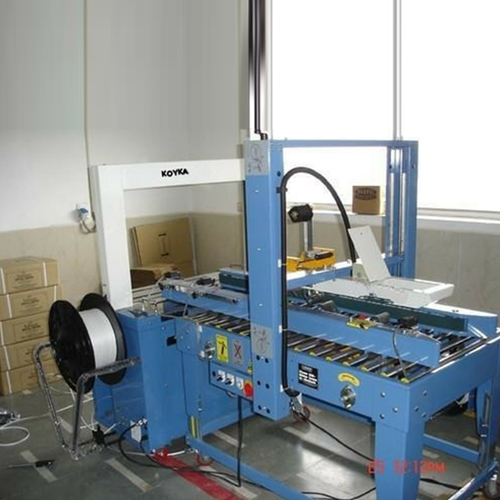

Fully Automatic Taping With Strapping Machine

Product Details:

Minimum Order Quantity 1 Piece
Material S.S. AND M.S.
Capacity 2/sec
Brand Koyka
Model Kepl0079
Weight 260 Kg
Strap Width 915 mm



We offer a wide range of high quality Fully Automatic Strapping Machines to the esteemed clients, as per their specific demands. These machines are designed and fabricated with the aid of cutting-edge technology and machinery. Moreover, our quality controllers check these machines on certain well-defined parameters to gauge their flawlessness.





Rugged construction

Durable standards

Require less maintenance



Model Fully Automatic Strapping Machine KEPL 101 FF
Max. Strap size (mm) 800x600
Min. strap size (mm) 80x50
Strapping speed (seconds) 2.15
Strap Width (mm) 9 15
Strap Force (newton) 25 – 700
Working Table Height (mm) 830
Power Source (V/Hz) 440 / 50, 0.1.2HP
External Dimension (mm) 1420 x 650 x 1565
Weight (kg) 260



Band Sealer

Product Details:

Minimum Order Quantity 1 Piece
Capacity 12-16
Brand Koyka
Model kepl0083



Continuous Band Sealer offeredis available under model options of KEPL 900L and KEPL 900V and require voltage (V/Hz) inputs of 220/50. These systems come with sealing Speed (m/min) of 0~12 (0~16) and 0~12 (0~16) and sealing width (mm) capabilities of 8~10 and 8~10. These are suitable for applications where fast, secure packing sealing is required and work as versatile sealing machines for heat sealable virgin and laminated pouches. Further, these allow sealing of different prefilled flexible bag varieties in a continuous cycle and finds usage suitability in industries like engineering and industrial items, food packaging, chemicals packaging.





Suitable for applications where fast, secure packing sealing is required

Working as versatile sealing machines, these are well suited for sealing support to heat sealable virgin and laminated pouches

Allows sealing of different prefilled flexible bag varieties in a continuous cycle

Finds usage suitability in industries like engineering and industrial items, food packaging, chemicals packaging

Providing heat sealing support for laminated or non laminate pre made pouches

Can seal plastic films developed using different material grades in a continuous fashion

Suitable for increasing process speeds in semi automatic bag sealing applications



Model KEPL 900L KEPL 900V
Voltage (V/Hz) 220/50 220/50
Power (W) 650 650
Sealing Speed (m/min) 0~12 (0~16) 0~12 (0~16)
Sealing Width (mm) 8~10 8~10
Temperature range (Deg.C) 0~300 0~300
Distance from the sealing center to the conveying table (mm) 10~40 150~270
Conveyor size (L.xW) mm 840 x 153 840 x 153
Film Thickness (mm) 0.08 0.08
Single Conveyor Loading (kg) 1.5 sec/strap 1
Overall conveyor Loading(kg) 3 3
Overall Dimension (lxwxh)mm 840 x 380 x 320 840 x 380 x 550
Net Weight (kg) 32 37

Contact Info

Useful links

Our Products

.

Copyright © 2020 KOYKA. | All Rights Reserved.

Design by - Creative Den Solutions
