BUCKET CONVEYOR

Product description:

We are manufacturer of all type conveyor as per customer requirement, this bucket conveyor use in food and crop industry in material transfer one place to other place.



Design Standard, Customized
Motor 1 hp, single phase
Weight Approx 150kg
Buckets Food grade plastic
Capacity 1 ton



Dimension(L*W*H) vary from different models
Power(W) 3-22kw
Voltage 220V, 380, 415V
Form of Lifting Belt

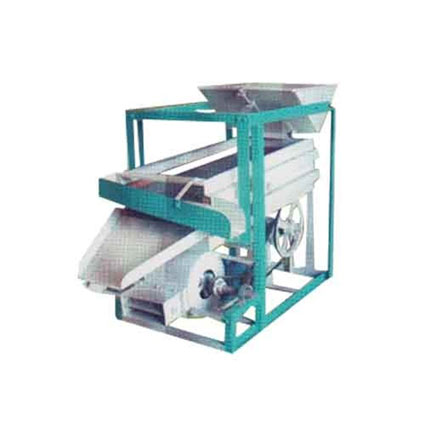

SEPERATOR

Product description:

The machine is complete with suitable electric motor, starter, switch, one deck assembly, feed hopper with feed control, tool kit and other standard features.

Optional Accessories:

Buffer hopper/ Surge bin (Metallic), Vibratory feeder, Canopy dust system with hood to cover part of deck, Additional deck assembly Fine/Coarse seeds, Vertical Bucket Elevator to feed with Specific Gravity Separator. We plan, design, supply, install & Commission Seed/Grain Processing & handling plants for spice/grain/pulses/oil seeds etc on . We also supply Seed/Grain testing lab equipment. Due to constant research & development, all designs & specifications are subjected to change without prior intimation.



Model GS-2F1T GS-3F2T GS-5F34T GS-7F6T
No. of Fans 2 3 5 7
Capacity (Based on Wheat) 1.0 Ton / Hr. 2.0 Ton / Hr. 4.0 Ton / Hr. 6.0 Ton / Hr.
Size of Deck 1230 x 800 mm 1590 x 800 mm 2340 x 1050 mm 3100 x 1150 mm
Type of Deck Rectangular Rectangular Rectangular Rectangular
Powder Consumption 2.25 KW .75 KW 5.5 KW 9.75 KW
Electric Drive 3.0 HP 5.0 Hp 7.5 HP 10.0 HP- For Fan

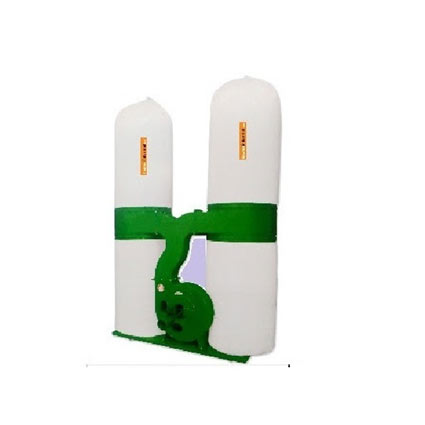

DUST COLLECTOR

Product description:

A dust collection system is an air quality improvement system used in industrial, commercial, and home production shops to improve breathable air quality and safety by removing particulate matter from the air and environment. Dust collection systems work on the basic formula of capture, convey and collect.

First, the dust must be captured. This is accomplished with devices such as capture hoods to catch dust at its source of origin. Many times, the machine producing the dust will have a port to which a duct can be directly attached.

Second, the dust must be conveyed. This is done via a ducting system, properly sized and manifolded to maintain a consistent minimum air velocity required to keep the dust in suspension for conveyance to the collection device. A duct of the wrong size can lead to material settling in the duct system and clogging it.

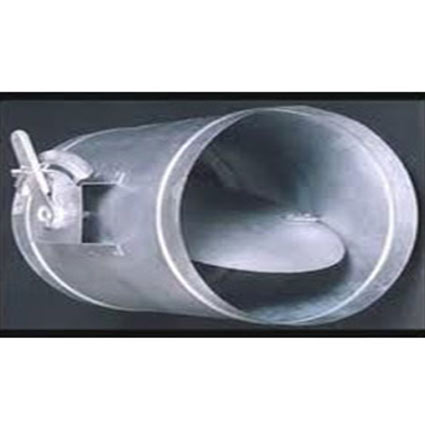

WATER DAMPER

Product description:

Leveraging on our quality oriented pool of professionals; we are dealing in offering Circular Damper to our clients. Ability to operate in hassle free manner for years gives an edge to our range over similar range available in market. It is energy efficient and is resistant to heat and other factors. It requires least amount of maintenance and is free from all types of defects. It gives smooth performance for years and is highly durable.



1. Corrosion resistant

2. Highly durable

3. Resistant to wear and tear

Varam with water dumpler system

5” varam Blade



SCREW CONVEYOR

Product description:

Backed by the profound industry experience, we have been able to provide the customers with excellent Industrial Stainless Steel Screw Conveyor. Developed at par with the global quality standards, the range is widely used in a plethora of industrial applications for moving varied material in inclines & horizontal directions.



Diameter 150mm

Type Screw Conveyors

Material SS

Motor 2HP,3 phase

Weight approx 50 kg

Hopper capacity 50 kg

Shaft Dia 45mm



Low maintenance

Robust construction

Dimensional accuracy

Resistance against corrosion

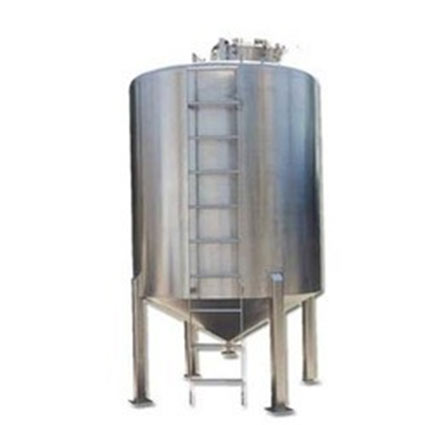

RESERVE TANK

Product description

We offer highly effective storage tanks that are developed using high quality MS and SS. Our tanks are widely used in various industrial and commercial application for the purpose of storing liquids and gases. The product can be customized as per the client’s specifications.



Corrosion resistance

High strength

Robust construction



Storing liquids and granuals

Industrial application

Commercial application



Storage cylo size: 7’x8’x7’ feet

With C-channel structure

Folding wall & bolting system



POLISHER TANK

Product description

Being a customer oriented organization we are engaged in offering a quality approved range of Grain/Dal Polisher Machine in the market. Offered with the latest operation system, our machines are suitable to be used for polishing and buffing various type of pulses, grains and different type of crops. Offered machines are quality assured and known for their optimum performance. Our clients recommended these machines for their easy usage and less maintenance.



High durability

Sturdy Construction

Easy to operate



Drum sizes

10x27"

12x30"

14x30"

14x33"

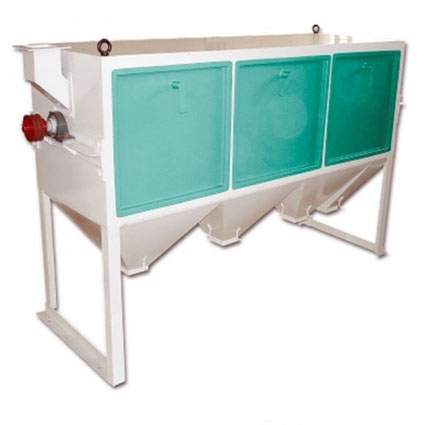

REEL CLEANING MACHINE

Product description

Being a customer focused organization, we are engaged in manufacturing and supplying a wide assortment of Reel Machine. All our offered products are manufactured using high-grade material that is sourced from most trusted vendors of market. These machines work effectively to separate impurities of different sizes. Moreover, clients can avail these in various specifications at nominal rates.



Ideal machine for per-cleaning purpose

Sizes Available : 2 sieve, 3 sieve & 4 sieve with sieve cleaning brush

Application : To separate out fine and large size impurities

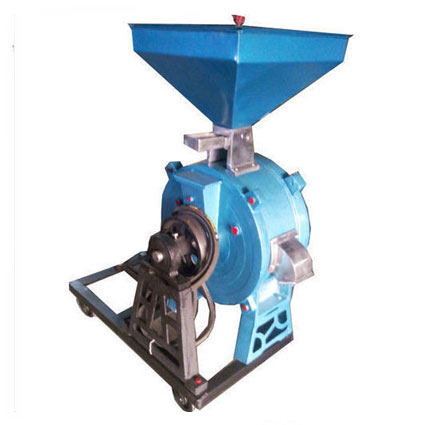

ATTA CHAKKI

Product description

Flour Grinding Mill Horizontal Grinding Mills are for cost effective grinding of wheat, corn, spices, teff, sorghum, millet. We are engaged in the manufacture of a variety of technically advanced Horizontal Flour mill machines. They are capable of producing Flour with high nutrition value with their unique feature of cool grinding. This machine is multipurpose use. The machine is very simple in operation and easy in maintenance.

High quality

Reasonable price

Delivery on time

Quality Assurance



Heavy duty chakki 24”

with emery stone 4 pair , 8 nos.

With pulley set & v-belt,2.5”shaft & double bearing



FILTER BOX

Product description

Being a customer focused organization, we are engaged in manufacturing and supplying a wide assortment of FILTER BOX. All our offered products are manufactured using high-grade material that is sourced from most trusted vendors of market. These machines work effectively to separate impurities from atta. Moreover, clients can avail these in various specifications at nominal rates.

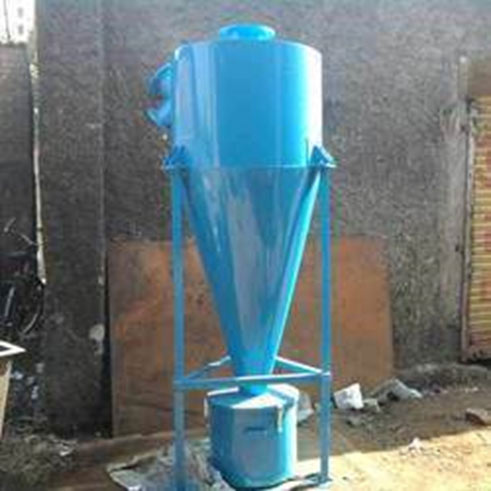

CYCLONE

Product description

We offer a wide range of Single stage Cyclones from low and medium volume dust cleaning. Dry cyclones offered by us are suitable for collection of dry, granular, short fibrous dust and chips from air of gas stream. Our dry cyclones are highly effective in collection of the dust that have higher size of particulate matters. Available in simple design , they are immune to all kind of acids and are almost maintenance free.



SCREW CONVEYOR

Product description:

Backed by the profound industry experience, we have been able to provide the customers with excellent Industrial Stainless Steel Screw Conveyor. Developed at par with the global quality standards, the range is widely used in a plethora of industrial applications for moving varied material in inclines & horizontal directions.



Diameter 150mm

Type Screw Conveyors

Material SS

Motor 2HP,3 phase

Weight approx 50 kg

Hopper capacity 50 kg

Shaft Dia 45mm



Low maintenance

Robust construction

Dimensional accuracy

Resistance against corrosion



AIR LOCK

Product description:

pWe are among the renowned names in the industry for offering Rotary Air Lock. The provided air lock is used for eradicating loss of air from machines and ensures trouble-free operations. This device is designed in tandem with the most modern generation trends and is highly cherished. , resistant to corrosion compact in size and energy efficient and can be custom-made according to the demands of the clients.



Energy efficient

Long lasting

Trouble free operations

Rust proof



AIR BLOWER

Product description:

Usage in drying, chemical processing, dust collection and pneumatic conveying of materials, this High Pressure Blower provides a high flow of air. Size:- 2*2.5ft

High Pressure blower 7.5 hp

cyclone

Air Collector five out let

Air lock with glass & pulley set



COLLAR AUGER FILLER

Product description:

The range of Collar Type Auger Based Filler offered by us is widely appreciated in the market for its durability and rugged construction. Collar Type Auger Filler machines are fabricated by a team of experts, in compliance with the international quality standards. Moreover, we make sure that the ordered products get delivered at the clients’ premises within the committed time frame.



Automatic, compact and PLC controlled machine

Simple operation and low maintenance

Top quality components and best workmanship

All contact parts are made of stainless steel

Easy pouch length adjust ability

Photoelectric mark registration system for precise cutting and sealing of the pouches

Machine mounted on coaster wheels for easy movement



Pouch Width

Minimum=50mm

Maximum=1900mm

Pouch Length

Minimum = 65mm

Maximum = 300mm

Film Width

Minimum = 120mm

Maximum = 400mm

Net Weight of M/C 800kg-900kg.

Power requirement 3KW, Three Phase, 440V.A.C.M/C Dimension (LxWxH) Approx 1350x990x1900mm (it can be vary)



AIR COMPRESSOR

Reciprocating type Air cooled compressors:

Low Noise

Easy to Install

Cost efficient



Power (HP) 2 3 5 7.5 10 15
Compressor (RPM) 600 950 715 950 750 1150
Tank capacity (Ltrs.) 160 160&250 250 250 420 500
Working pressure (Kg/cm2) 12 12 12 12 12 12
Free Air delivery (LPM) 192 245 394 495 835 1232
No. of cylinders 2 2 2 2 2 2
