Vibro separator is used to separate mass composition of solids from solids, liquid from solid and for gradation of materials as per particle size, having very wide range applications.
This is accomplished by vibrating the screens in three different planes along the vertical axis by means of a specially designed vibratory motor having off centred weights at the top and bottom end of the motor shaft.
The top weight causes vibration in the horizontal plane which causes the material to move across the screen towards the periphery. The lower weight acts to tilt the machine which causes vibration in the vertical tangential axis.
The angle of lead of the lower weight with relation to the upper weight provides variable control of the screening pattern. Thus the material moves across the screens and also in the vertical and tangential planes enabling maximum screening.Vibro sifters are available with a wide range of possible screen sizes (mesh) Option for multiple deck separation is also possible.
The unit consist of Specially designed vibratory motor to run on 400 / 440V, suitable HP, 3 phase, 50 cycles electric supply ,with adjustable eccentric weights at the top and bottom of the motor shafts mounted vertically at the centre of the base plate of screening unit. Screening unit consists of SS 304 screen sandwiched between SS 304 hopper and bowl with the help of special clamp with gasket. Rugged Springs placed over the circular motor base amplify the vibration and at the same time restrict the vibration from being transferred to the floor.
Noiseless, Maintenance free & high speeds
Available in various models providing screening diameter of 12”, 20”, 30” , 36”, 48”, 72” etc
Portable and compact
Electric power requirement less than other machine of the kind in the industries & lower energy consumption compared to reciprocating vibratory system
All contact parts and screen of SS 304 AISI stainless steel material.
SS 316 quality contact parts optional.
Easy dismantling and cleaning facility for contact parts.
Wide range of screen sizes 4-300 Mesh.
Double & Triple deck screens with outlet and hopper for bottom deck available on request.
Model | 20” | 30” | 48” |
Screens | SS 304 | SS 304 | SS 304 |
Screen Dia. | 508 mm. | 762 mm. | 1200 mm. |
Capacity / Hour* | 20 to 140 Kgs. | 30 to 200 Kgs | 200 to 400 Kgs. |
Charging height | 1110 mm. | 1250 mm. | 1340 mm. |
Discharging height | 690 mm. | 790 mm. | 850 mm. |
Electric Motor | 0.25 HP special vibratory motor | 0.5 H.P. special vibratory motor | 1.5 HP Special vibratory motor |
Net weight (Approx.) | 150 Kgs. | 200 Kgs. | 350 Kgs. |
Gross Weight (Approx.) | 200 Kgs | 260 Kgs. | 420 Kgs. |
Machine Dimension (in mm) | 700mm x 700 mm x 1000 mm | 900mm x 900 mm x 1250 mm | 1350mm x 1350 mm x 1350 mm |
Case Dimensions (in mm) | 900 mm x 900 mm x 1300 mm | 1000 mm x 1000 mm x 1400 mm | 1450 mm x 1450 mm x 1500 mm |
We are manufacturer of all type conveyor as per customer requirement, this bucket conveyor use in food and crop industry in material transfer one place to other place.
Design | Standard, Customized |
Motor | 1 hp, single phase |
Weight | Approx 150kg |
Buckets | Food grade plastic |
Capacity | 1 ton |
Dimension(L*W*H) | vary from different models |
Power(W) | 3-22kw |
Voltage | 220V, 380, 415V |
Form of Lifting | Belt |

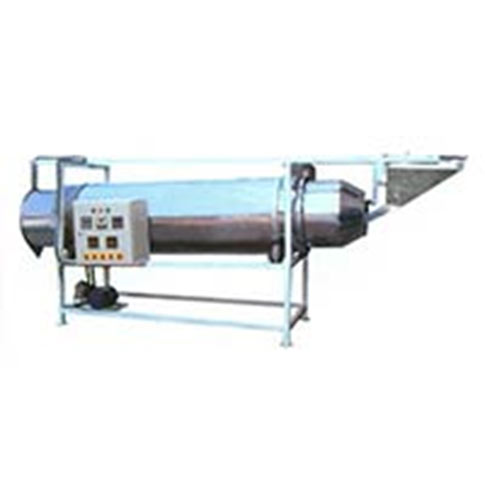

Backed by the team of experienced professionals, we have been able to manufacture and supply an extensive range of Roster Machine. This machine is designed and manufactured by our professionals using quality tested components with the help of cutting-edge technology. Our valuable clients can avail this machine from us at very reasonable rates.
All contact parts are available in SS304 or SS 316 , alternatively, low cost options in MS or SS 202 are also available. Fitted with Control Panel comprises of Temperature Sensors, VFD etc.
Capacity | 100-300kg/hr |
Power consumption | 6kw-24kw |
Main Motor | 1 H.P 3 phase |
Gear Box | 2 inch |
Heater | 6/8/12 kW |
Length | 12/14 /16/18 feet |
Excellent performance
Easy installation
onger service life
Energy efficient
We are manufacturer of all type conveyor as per customer requirement, this bucket conveyor use in food and crop industry in material transfer one place to other place.
Design | Standard, Customized |
Motor | 1 hp, single phase |
Weight | Approx 150kg |
Buckets | Food grade plastic |
Capacity | 1 ton |
Dimension(L*W*H) | vary from different models |
Power(W) | 3-22kw |
Voltage | 220V, 380, 415V |
Form of Lifting | Belt |

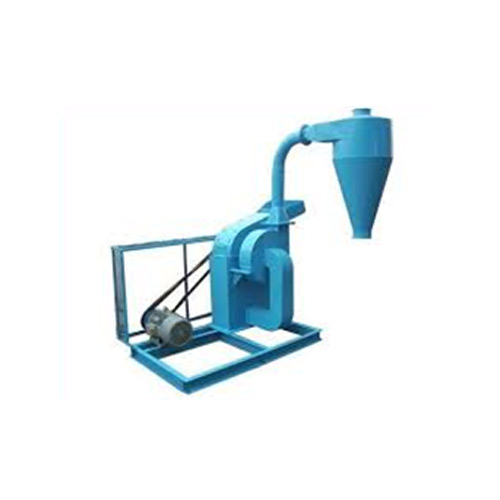

The unit is to grind whole roasted chana /pulses for making besan & sattu Grinding mill with steel machines horizontal split, totally enclosed chamber and C.I.chipper-hopper complete with free swing type tungsten special hammers. Mild steel feed hopper, one cyclone collector swivel type, complete unit with pulley belt system.
IMPACT and Liners are available in different shapes and construction like MS, stainless steel etc., to suit the material
Most suitable and convenient range to pulverize the material up to 60 - 80 mesh
Robustly constructed machine for crushing different spice, chemicals, Ayurvedic Herbs, Agro Products
Used without cyclone and dust collector for bigger output particle size and for fine material, a cyclone with dust collector is used
Different type of material for liners and hammer as per client product for better result and best life of wear & tear
Capacity Range :75 – 100 kg/hr
Size :16”
Motor: 20hp

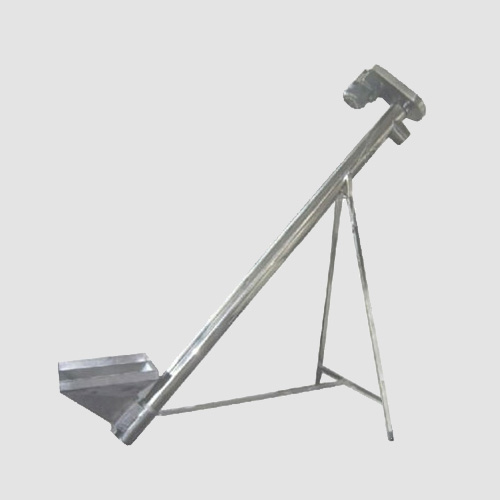

Backed by the profound industry experience, we have been able to provide the customers with excellent Industrial Stainless Steel Screw Conveyor. Developed at par with the global quality standards, the range is widely used in a plethora of industrial applications for moving varied material in inclines & horizontal directions.
Diameter 150mm
Type Screw Conveyors
Material SS
Motor 2HP,3 phase
Weight approx 50 kg
Hopper capacity 50 kg
Shaft Dia 45mm
Low maintenance
Robust construction
Dimensional accuracy
Resistance against corrosion
We manufacture and export a qualitative range of Masala(powder) Mixing/ Tilting Machines. Our personnel make use of premium grade raw materials and advanced techniques of production to fabricate these machines. These machines also stringently checked and are in compliance with international quality standards. Moreover, we also customize these machines as per the specifications of our clients and offer them at competitive prices.
5HP Motor 3phase
50 Hz.
Capacity as per requirement
Gear Box 3” Size.
“Main Switch Reverse Forward.
Dimension as per capacity
Type -Spiral Ribbon
Backed by the profound industry experience, we have been able to provide the customers with excellent Industrial Stainless Steel Screw Conveyor. Developed at par with the global quality standards, the range is widely used in a plethora of industrial applications for moving varied material in inclines & horizontal directions.
Diameter 150mm
Type Screw Conveyors
Material SS
Motor 2HP,3 phase
Weight approx 50 kg
Hopper capacity 50 kg
Shaft Dia 45mm
Low maintenance
Robust construction
Dimensional accuracy
Resistance against corrosion
The range of Collar Type Auger Based Filler offered by us is widely appreciated in the market for its durability and rugged construction. Collar Type Auger Filler machines are fabricated by a team of experts, in compliance with the international quality standards. Moreover, we make sure that the ordered products get delivered at the clients’ premises within the committed time frame.
Automatic, compact and PLC controlled machine
Simple operation and low maintenance
Top quality components and best workmanship
All contact parts are made of stainless steel
Easy pouch length adjust ability
Photoelectric mark registration system for precise cutting and sealing of the pouches
Machine mounted on coaster wheels for easy movement
Pouch Width
Minimum=50mm
Maximum=1900mm
Pouch Length
Minimum = 65mm
Maximum = 300mm
Film Width
Minimum = 120mm
Maximum = 400mm
Net Weight of M/C 800kg-900kg.
Power requirement 3KW, Three Phase, 440V.A.C.M/C Dimension (LxWxH) Approx 1350x990x1900mm (it can be vary)
Low Noise
Easy to Install
Cost efficient
Power | (HP) | 2 | 3 | 5 | 7.5 | 10 | 15 |
Compressor | (RPM | 600 | 950 | 715 | 950 | 750 | 1150 |
Tank capacity | (Ltrs. | 160 | 160&250 | 250 | 250 | 420 | 500 |
Workingpressure | (Kg/cm2 | 12 | 12 | 12 | 12 | 12 | 12 |
Free Air delivery | (LPM | 192 | 245 | 394 | 495 | 835 | 1232 |
No. of cylinders | 2 | 2 | 2 | 2 | 2 | 2 |
