Minimum Order Quantity | 1 Unit |
Type | Portable, Automatic |
Brand Preference | Koyka |
Motor Power | 5Hp |
Lifting capacity: 4000kg
Lifting height: 1800mm
Minimum height: 110mm
Lifting time: 40-45s/50s
Overall height: 2830mm
Overall width: 3420mm
Width between column: 2820mm
Motor power: 2.2kW
Power supply: 220V/240V/380V/415V
Package: 2900x530x770mm
Minimum Order Quantity | 1 Unit |
Suitable for | Car |
Automatic Grade | Automatic |

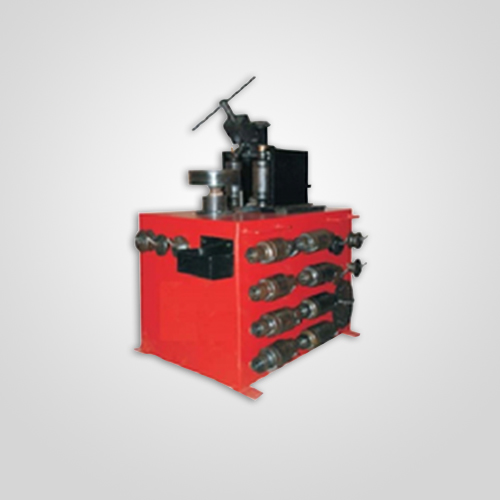

We are engaged in manufacturing and exporting a wide range of rim straightener. These rim straightener are mainly used for Tata Safari, Mahindra Bolero and many others. Our range of rim straightener is durable and is highly functional. Further, these are also available at industry leading prices.
Die attachment for 4', 4.5", 5', 5.5', 6 ' rim width
Power requirement: 220V AC single phase / three phase
Motor: 2hp, 1440 RPM
Gross weight of machine: 250 kg
Automatic release from one side
Electric/hydraulic power system./p>
Heavy-duty equalizer cables with over size cable sheaves.
Base plate design suitable for lowering celling work shop.
Dual hydraulic "Driect - Drive" cylinder
Heavy duty carriage for superior strength and durability
Drop-end arms provide a lower pad height.
Lifting capacity 3.5T
Lock release type Manual release
Lift Height 1800mm
Lifting time 50 sec
Height of post 2725mm
Motor power 2.2 kw
Power supply 380 volts/220 volts
Rim clamping from outside |
10”- 18” (12”-20”) |

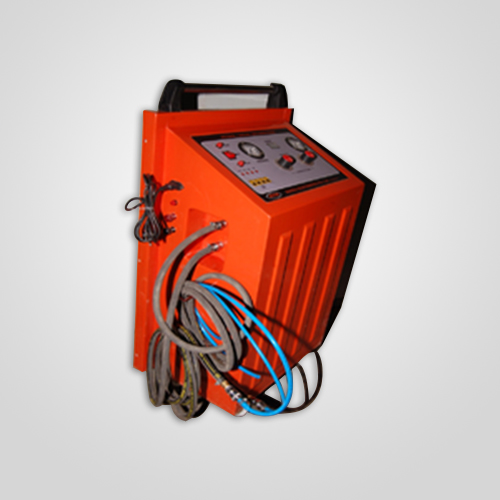

Suitable for both petrol Diesel.
Operated on 230 volt AC or 12 volt DC.
Electronic Timer.
Pressure regulator to control the pressure.
Buzzer to indicate the completion of cycle.
Adaptors for various vehicles.
very light weight as body is made of fiber.
Easy moveable as wheels are provided.
Ac voltage display on panel.
3D Wheel Aligner based with CCD having facility of generate maintain customer's data bank and facility for customized print out.
Colour LCD with high pressure resolution graphics
Measuring Range with Accuracy
Wheel Size Range 10" - 20"
Total Toe ±20° with ±2'
Individual Toe ±20° with ±1'
Camber ±10° with ±5'
Castor ±18° with ±5'
Kingpin Inclination ±18° with ±5'
Wheel Setback ±5° with ±2'
Load Capacity of Turntables 600 Kgs
Power Supply 220V, 1 phase

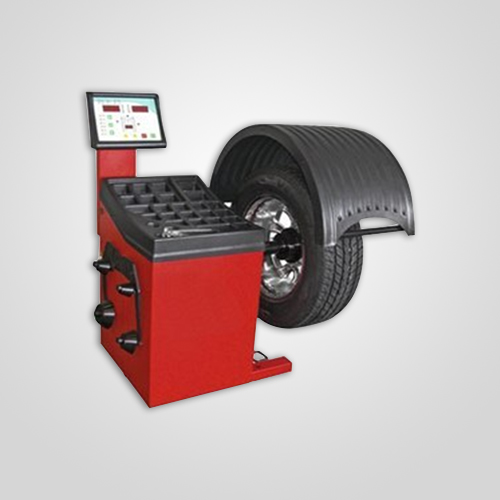

19" Colour display, Easy setting
Digital data setting using "+" "-" keys
Brief cycle time of 6 secs
Single spin low RPM balancing technology
Automatic positioning for weight installation
Un-balance Optimization: Weight Optimization (reduction)
Self calibration using master weight
Self Diagnostic Un-balance optimisation
Alloy / Mag wheel balancing
Pedal brake
Proven design
Rim Diameter | 10" - 24" or 265 - 615 mm |
Rim Width | 1.5" - 20" or 40 - 510 mm |
Distance between wheel and machine | 0 - 25 cm |
Balancing Accuracy | 1 gm. |
Power Supply | 220 - 240 V, 50 - 60 Hz Single Phase |
Motor | 0.33 Kw |
Maximum Power Consumption | 0.6 Kw |
RPM | 60 |
Wheels weighing upto | 75 Kg |
Dimensions with Wheel Guard WxLxH | 1350 (Hood open) x1220x1670 |
Net Weight with Wheel Guard | 160 kg (Excluding Adaptors) |
Our company has achieved milestone in offering Car Scanner to the clients. Features :Top class quality Resistant to breakage Aesthetic appearance Specifications: Display: Touch Screen Upgradation via Internet Working Temperature: -20C~60C Storage Temperature: -20C~70C Working Voltage: Powered by vehicle battery, DC 9V-15V

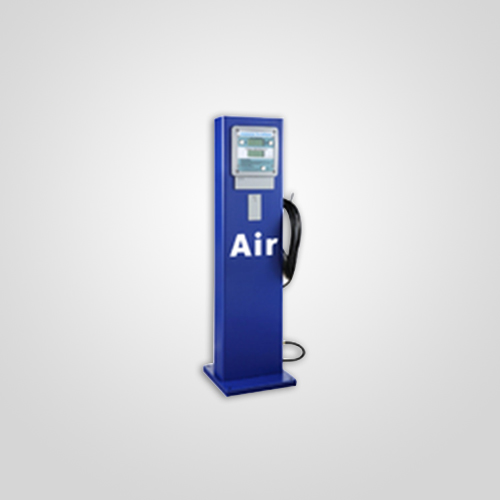

We are offering Tyre Inflator to our client.
Compressed air input range 10-12bar / 145-175psi
Nitrogen output 66lpm @ 10bar / 145psi
N2 output pressure 7bar / 100psi
Nitrogen storage tank 70liter
Motor power 60w
Motor voltage 220v, 1ph
Display mode LED
Weight 145kg
Packing size 760x615x1560mm
Minimum Order Quantity: 1 Unit
Owing to our in-depth knowledge and market understanding, we have been able to manufacture and supply a superior quality assortment of Computerized Injector Cleaning Testing Machine Semi Auto. This semi automatic machine is manufactured using high quality basic material with the aid of latest tools and technology under the supervision of our skilled professionals. Our clients can avail this semi automatic machine at the most reasonable rate.
The machine can perform cleaning testing of all types of top feed and side feed multipoint
Single point fuel injectors for all types of MPFI vehicles
The machine can operate either on 230V AC ± 10% or 12 V DC@ 15 Amp battery supply
Machine will give Alarm at the end of each cleaning testing Operation
Any Operation can be Hold at any time during cleaning testing
The machine will depressurize the rail after cleaning testing by Drain key to avoid any wastage of chemical
Utility Drawer at base for keeping spares
